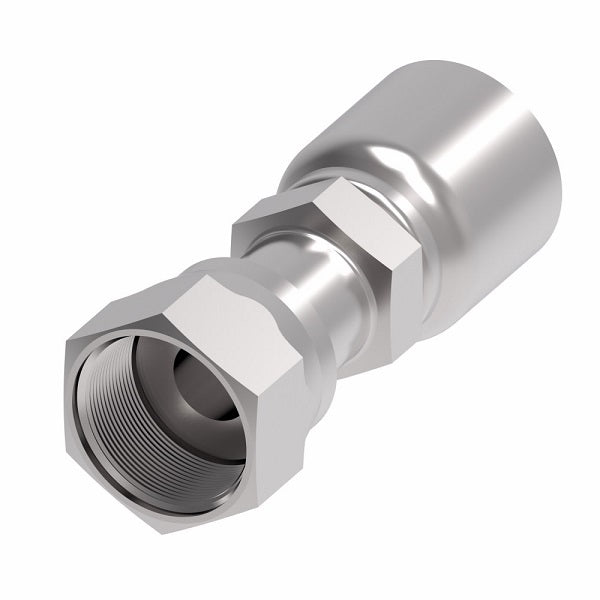

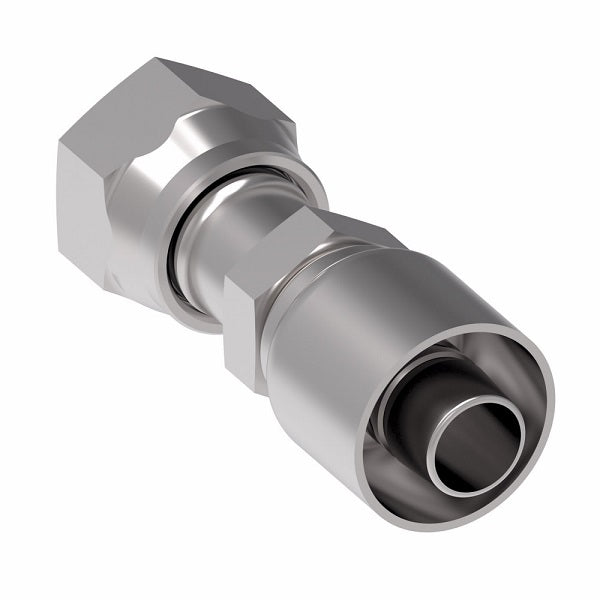

1GA24FR20 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel (FR) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire OTC Female O-Ring Face Seal (ORS) Swivel (FR) - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $425.35 |
| 15–29 | $384.63 |
| 30+ | $339.38 |
Discounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 1 |
Hex 2 |
| 1GA4FR4 | 9/16-18 | -04 | 1.95" | 1.03" | 0.17" | 11/16" | 9/16" |
| 1GA4FR6 | 9/16-18 | -06 | 2.14" | 1.15" | 0.17" | 11/16" | 11/16" |
| 1GA6FR6 | 11/16-16 | -06 | 2.07" | 1.24" | 0.26" | 13/16" | 11/16" |
| 1GA8FR8 | 13/16-16 | -08 | 2.61" | 1.50" | 0.36" | 15/16" | 7/8" |
| 1GA10FR10 | 1-14 | -10 | 2.62" | 1.61" | 0.45" | 1-1/8" | 1-1/16" |
| 1GA12FR10 | 1-3/16-12 | -10 | 2.65" | 1.63" | 0.50" | 1-3/8" | 1-1/16" |
| 1GA12FR12 | 1-3/16-12 | -12 | 2.91" | 1.72" | 0.61" | 1-3/8" | 1-1/8" |
| 1GA16FR12 | 1-7/16-12 | -12 | 2.98" | 1.79" | 0.61" | 1-5/8" | 1-3/8" |
| 1GA12FR16 | 1-3/16-12 | -16 | 3.22" | 1.86" | 0.61" | 1-3/8" | 1-3/8" |
| 1GA16FR16 | 1-7/16-12 | -16 | 3.29" | 1.94" | 0.81" | 1-5/8" | 1-3/8" |
| 1GA20FR16 | 1-11/16-12 | -16 | 3.25" | 1.90" | 0.81" | 1-7/8" | 1-5/8" |
| 1GA20FR20 | 1-11/16-12 | -20 | 4.07" | 2.33" | 1.02" | 1-7/8" | 1-3/4" |
| 1GA24FR20 | 2-12 | -20 | 3.88" | 2.15" | 1.05" | 2-1/4" | 1" |
| 1GA24FR24 | 2-12 | -24 | 4.02" | 2.19" | 1.26" | 2-1/4" | 2" |
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
