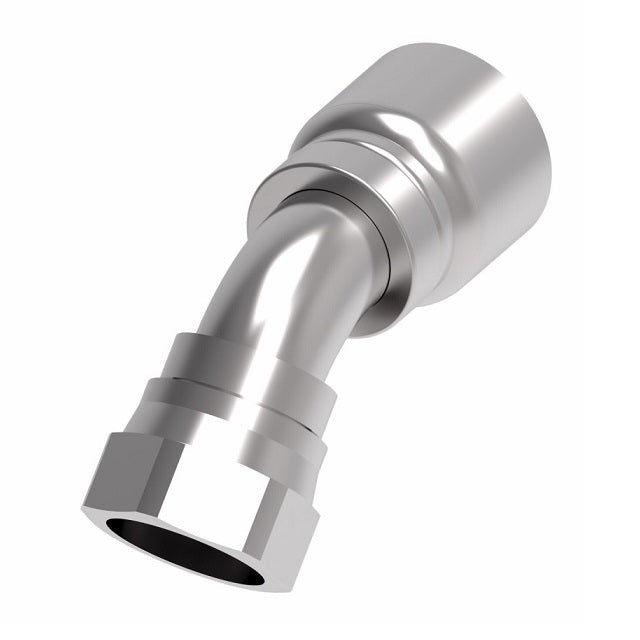

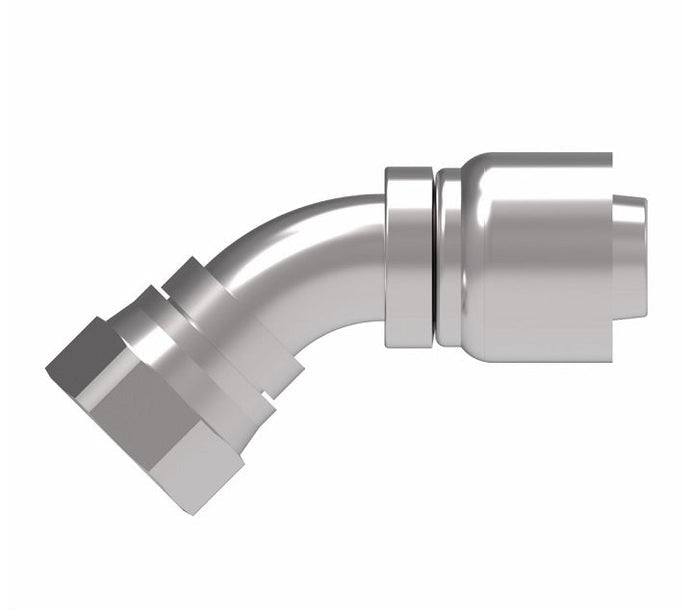

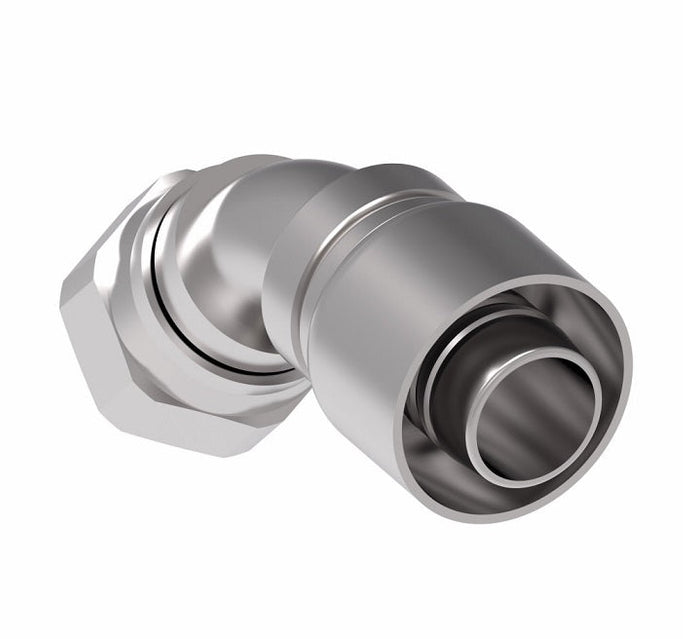

1GA24FJA24 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -24 Female JIC 37° Swivel x -24 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female JIC 37° Swivel Crimp Fitting (FJA) - 45° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $185.03 |
| 20–59 | $167.31 |
| 60+ | $147.63 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1GA6FJA6 | 9/16-18 | -06 | 2.31" | 1.31" | 0.24" | 0.39" | 11/16" |
| 1GA8FJA8* | 3/4-16 | -08 | 2.82" | 1.65" | 0.37" | 0.55" | 7/8" |
| 1GA10FJA8* | 7/8-14 | -08 | 3.03" | 1.86" | 0.38" | 0.59" | 1" |
| 1GA10FJA10* | 7/8-14 | -10 | 2.82" | 1.79" | 0.46" | 0.63" | 1" |
| 1GA12FJA12 | 1-1/16-12 | -12 | 3.43" | 2.24" | 0.58" | 0.78" | 1-1/4" |
| 1GA16FJA16 | 1-5/16-12 | -16 | 3.74" | 3.01" | 0.81" | 1.07" | 1-1/2" |
| 1GA20FJA20 | 1-5/8-12 | -20 | 4.44" | 2.71" | 1.01" | 1.22" | 2" |
| 1GA24FJA24 | - | -24 | - | - | - | - | - |
* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
