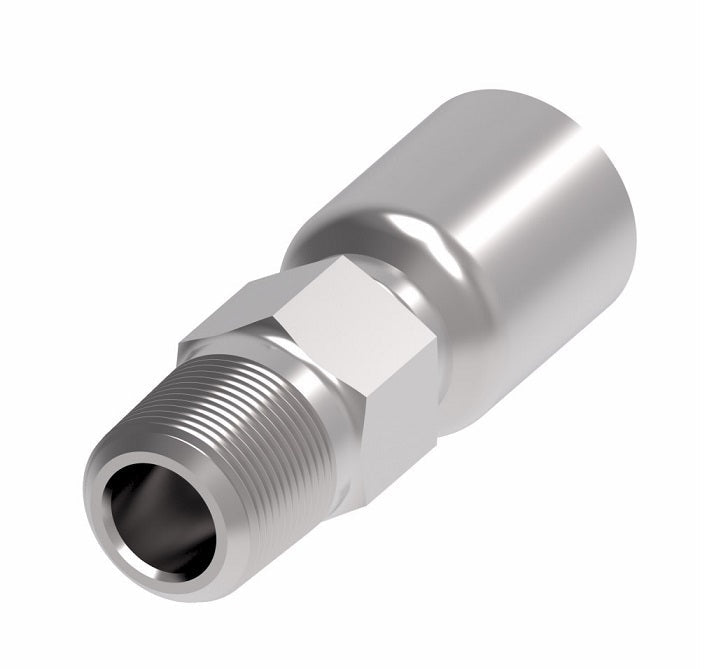

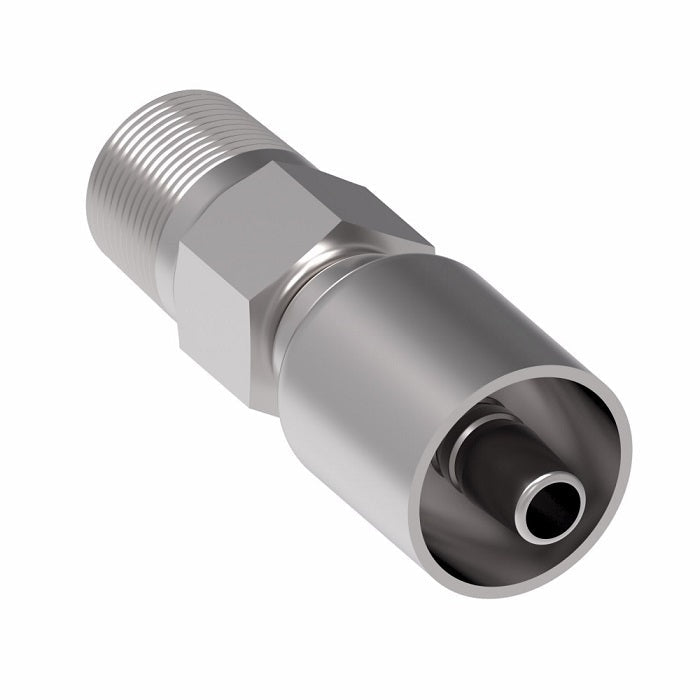

1GA20MP20 Aeroquip by Danfoss | 1 & 2 Wire OTC Male Pipe Crimp Fitting (MP) | -20 Male Pipe x -20 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire Global OTC Male Pipe Crimp Fitting (MP) - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $46.72 |
| 40–79 | $42.25 |
| 80+ | $37.28 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Stainless Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 2 |
| 1GA4MP4 | - | 1/4-18 | -04 | 2.06" | 1.14" | 0.17" | 9/16" |
| 1GA6MP6 | - | 3/8-18 | -06 | 2.17" | 1.27" | 0.26" | 11/16" |
| 1GA6MP8 | - | 3/8-18 | -08 | 2.39" | 1.32" | 0.38" | 13/16" |
| 1GA8MP8 | - | 1/2-14 | -08 | 2.80" | 1.60" | 0.38" | 7/8" |
| 1GA8MP10 | - | 1/2-14 | -10 | 2.61" | 1.58" | 0.50" | 15/16" |
| 1GA8MP12 | - | 1/2-14 | -12 | 2.78" | 1.60" | 0.56" | 1-1/8" |
| 1GA12MP10 | - | 3/4-14 | -10 | 2.43" | 1.40" | 0.50" | 1-1/16" |
| 1GA12MP12 | - | 3/4-14 | -12 | 2.84" | 1.65" | 0.61" | 1-1/8" |
| 1GA12MP16 | - | 3/4-14 | -16 | 3.02" | 1.67" | 0.76" | 1-3/8" |
| 1GA16MP12 | - | 1-11-1/2 | -12 | 2.80" | 1.61" | 0.61" | 1-3/8" |
| 1GA16MP16 | - | 1-11-1/2 | -16 | 3.22" | 1.86" | 0.82" | 1-3/8" |
| 1GA20MP20 | - | 1-1/4 - 11-1/2 | -20 | 3.52" | 1.79" | 1.05" | 1-13/16" |
| 1GA24MP24 | - | 1-1/2 - 11-1/2 | -24 | 4.18" | 2.36" | 1.26" | 2" |
| 1GA32MP32 | - | 2-11-1/2 | -32 | 4.59" | 2.61" | 1.75" | 2-1/2" |
