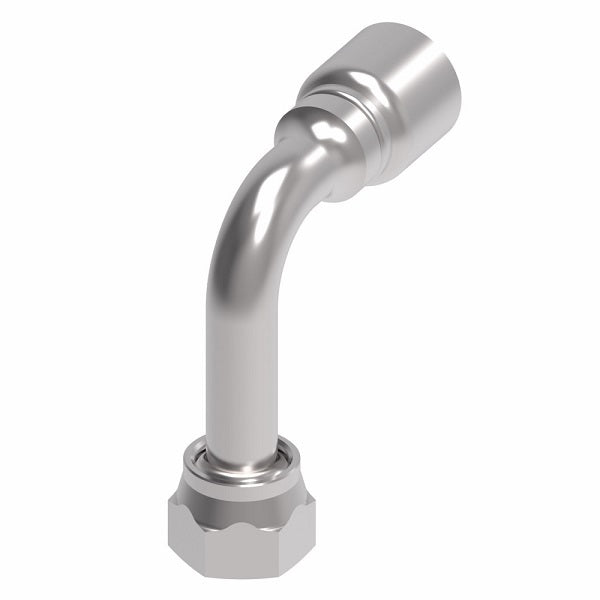

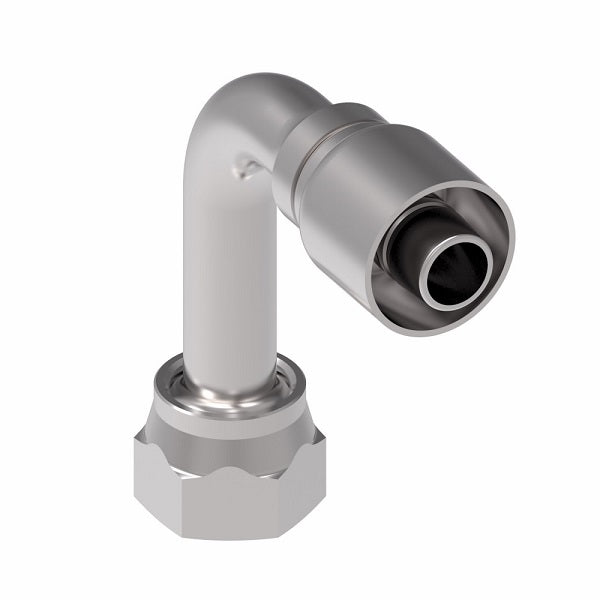

1GA20FRC20 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
1GA20FRC20 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
1GA20FRC20 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

1GA20FRC20 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

Sale price$126.24

Aeroquip® by Danfoss
1 & 2 Wire OTC Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $118.67
20–59 $107.30
60+ $94.68
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/4in Female O-Ring Face Seal
  • 1-1/4in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash H Hex 1
1GA8FRC8 13/16-16 -08 2.87" 1.67" 0.33" 2.51" 15/16"
1GA10FRC10 1-14 -10 3.08" 1.91" 0.44" 2.76" 1-1/8"
1GA12FRC12 1-3/16-12 -12 3.48" 2.30" 0.56" 3.78" 1-3/8"
1GA16FRC16 1-7/16-12 -16 4.22" 2.86" 0.78" 4.50" 1-5/8"
1GA20FRC20 1-11/16-12 -20 5.30" 3.57" 1.01" 5.09" 1-7/8"
1GA24FRC24 2-12 -24 4.63" 2.81" 1.26" 5.54" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
