1AA8FP8 Aeroquip by Danfoss | Dryseal Female Pipe Rigid (FP) TTC Crimp Fitting | -08 Female NPTF Rigid x -08 Hose Barb | Steel
Aeroquip® by Danfoss

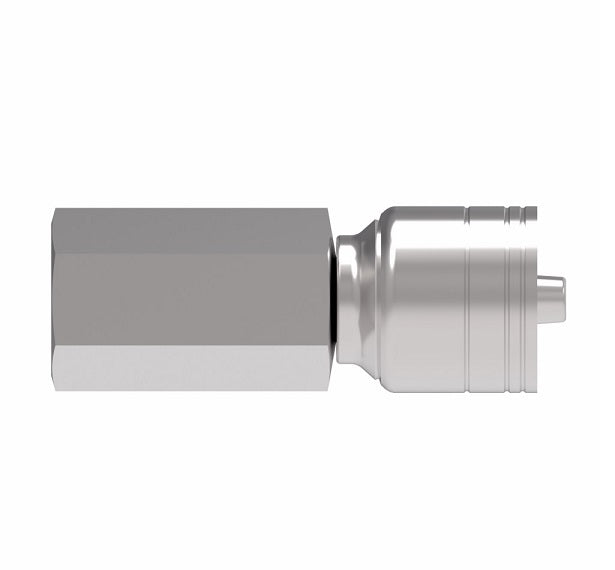

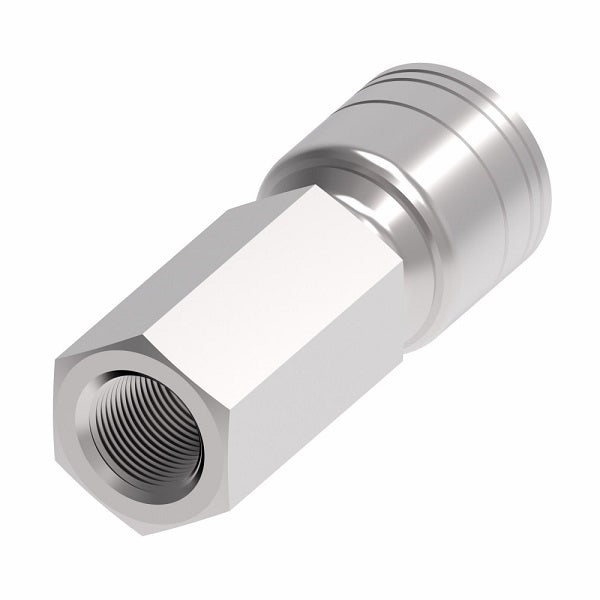

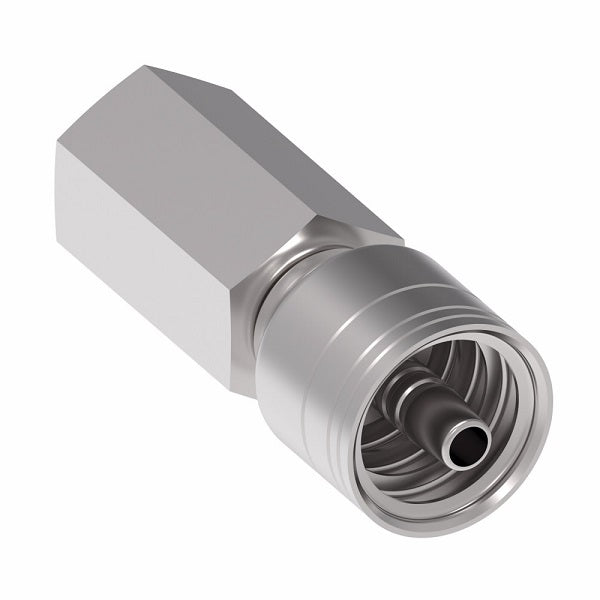

Dryseal Female Pipe Rigid (FP) TTC Crimp Fitting - Straight
(Formerly Eaton Aeroquip)
| Quantity | Price Each |
| 20–49 | $16.32 |
| 50–99 | $15.46 |
| 100+ | $13.74 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Female NPTF Rigid Thread |
Hose Size | A | Hose Cut-Off Factor | EØ | Hex 2 |
| 1AA2FP4 | 1/8-27 | -04 | 2.07" | 1.28" | 0.17" | 9/16" |
| 1AA4FP4 | 1/4-18 | -04 | 2.30" | 1.51" | 0.17" | 3/4" |
| 1AA4FP6 | 1/4-18 | -04 | 2.30" | 1.46" | 0.26" | 3/4" |
| 1AA6FP6 | 3/8-18 | -06 | 2.41" | 1.57" | 0.26" | 7/8" |
| 1AA8FP8 | 1/2-14 | -08 | 2.62" | 1.65" | 0.38" | 1-1/16" |
| 1AA12FP12 | 3/4-14 | -12 | 3.58" | 2.52" | 0.61" | 1-5/16" |
* G as part of thread size is ISO Designation for parallel thread.
