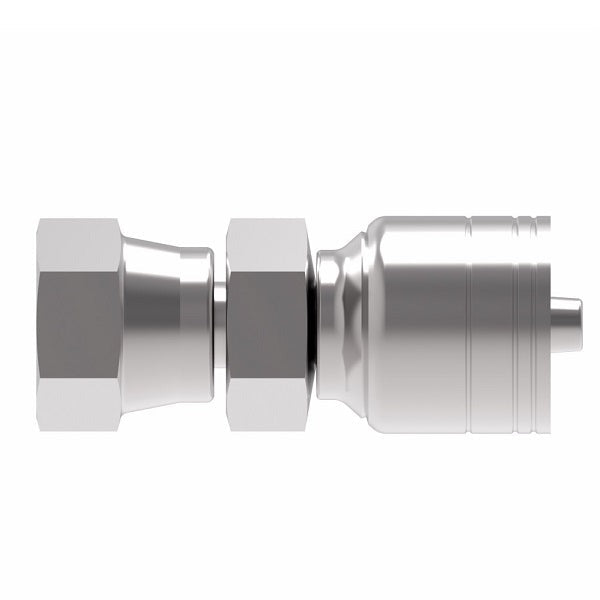

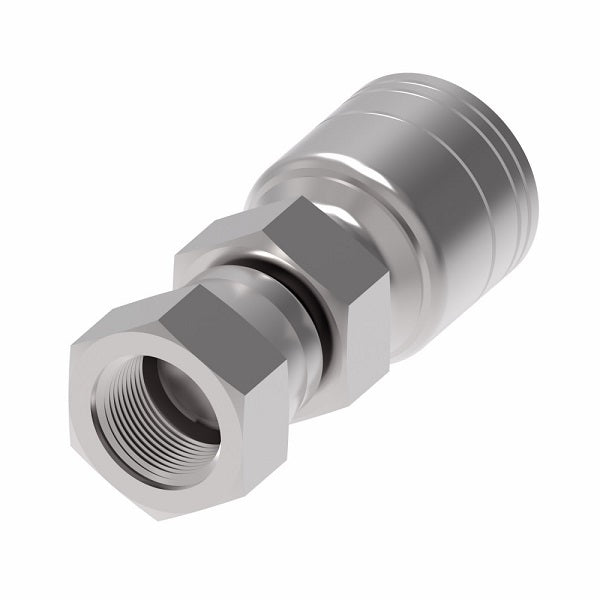

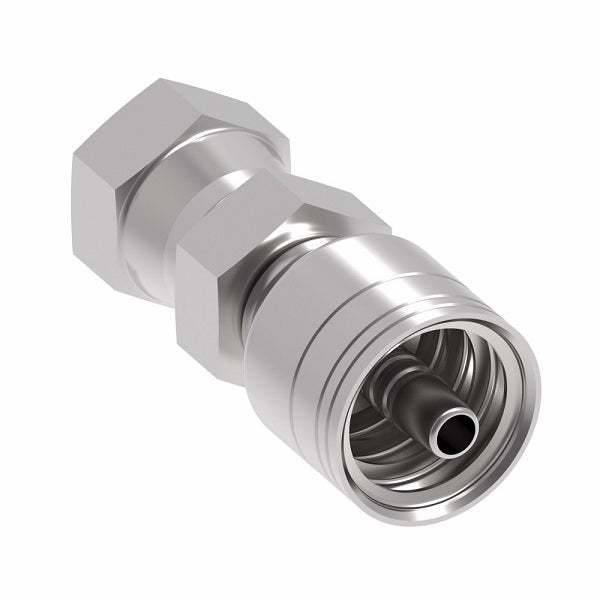

1AA8BW6 Aeroquip by Danfoss | Female BSPP Flat Face Swivel (BW) TTC Crimp Fitting | -08 Female BSPP Flat Face Swivel x -06 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number Steel | Thread | Hose Dash Size |
A | Hose Cut-OffFactor (D) | EØ | Hex 1 |
Hex 2 |
| 1AA6BW6 | G 3/8-19 | -06 | 2.25" | 1.42" | 0.26" | 11/16" | 3/4" |
| 1AA8BW6 | G 1/2-14 | -06 | 2.31" | 1.48" | 0.26" | 3/4" | 1-1/16" |
| 1AA8BW8 | G 1/2-14 | -08 | 2.63" | 1.64" | 0.36" | 13/16" | 1-1/16" |
| 1AA12BW8 | G 3/4-14 | -08 | 2.64" | 1.65" | 0.38" | 1" | 1-1/4" |
| 1AA12BW12 | G 3/4-14 | -12 | 2.80" | 1.74" | 0.61" | 1-1/8" | 1-1/4" |
* G as part of thread size is ISO Designation for parallel thread.
Additional Product Data:
Brand:
Series:
Shape:
Straight
Material(s):
Special Properties:
Compatible Series:
