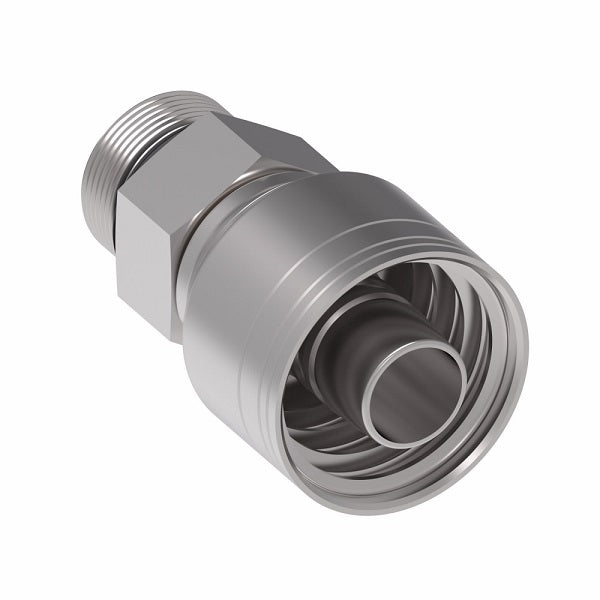

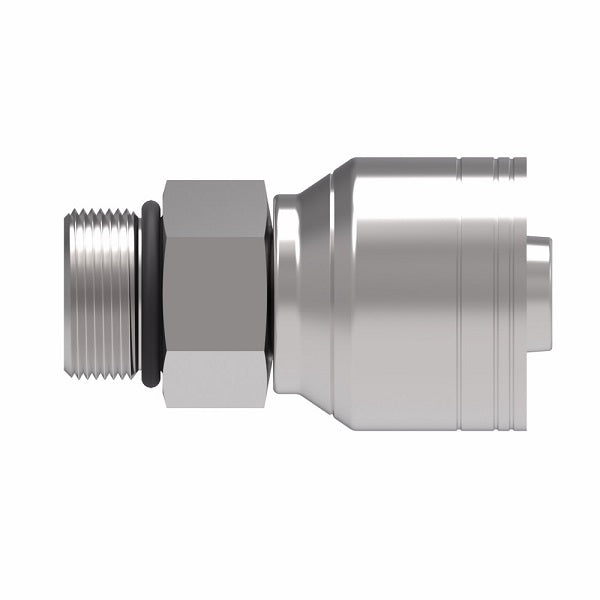

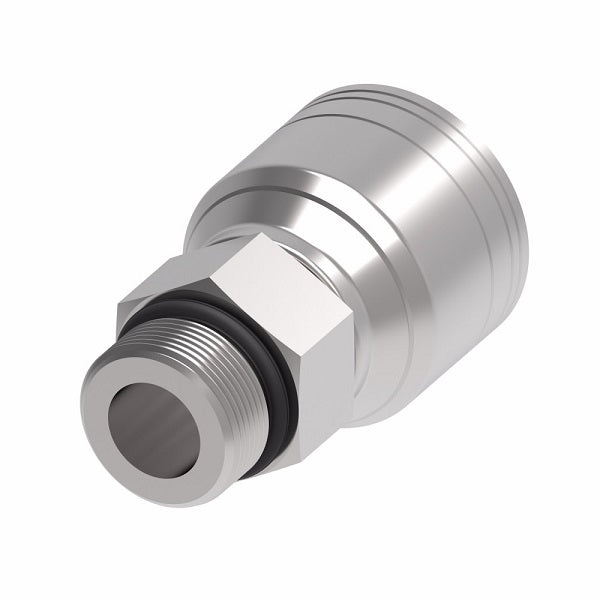

1AA4MB4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male Boss O-Ring (MB) Crimp Fitting | -04 Male Boss O-Ring x -04 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire Global TTC Male Boss O-Ring Crimp Fitting (MB) - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.80 |
| 40–79 | $15.19 |
| 80+ | $13.40 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 2 |
| 1AA4MB4 | - | 7/16-20 | -04 | 1.84" | 0.92" | 0.17" | 9/16" |
| 1AA5MB4 | - | 1/2-20 | -04 | 1.84" | 0.92" | 0.17" | 5/8" |
| 1AA6MB4 | - | 9/16-18 | -04 | 1.78" | 0.86" | 0.17" | 11/16" |
| 1AA6MB6 | - | 9/16-18 | -06 | 1.84" | 1.00" | 0.26" | 11/16" |
| 1AA8MB4 | - | 3/4-16 | -04 | - | - | - | - |
| 1AA8MB6 | 1AA8MB6TZ | 3/4-16 | -06 | 1.81" | 0.98" | 0.26" | 7/8" |
| 1AA10MB6 | - | 7/8-14 | -06 | 1.88" | 1.05" | 0.26" | 1" |
| 1AA8MB8 | 1AA8MB8TZ | 3/4-16 | -08 | 2.26" | 1.19" | 0.38" | 7/8" |
| 1AA10MB8 | - | 7/8-14 | -08 | 2.16" | 1.09" | 0.38" | 1" |
| 1AA12MB8 | - | 1-1/16-12 | -08 | 2.39" | 1.22" | 0.38" | 1-1/4" |
| 1AA8MB10 | 1AA8MB10TZ | 3/4-16 | -10 | 2.21" | 1.19" | 0.50" | 15/16" |
| 1AA10MB10 | - | 7/8-14 | -10 | 2.34" | 1.31" | 0.50" | 1" |
| 1AA10MB12 | - | 7/8-14 | -12 | 2.53" | 1.46" | 0.46" | 1-1/8" |
| 1AA12MB10 | - | 1-1/16-12 | -10 | 2.26" | 1.23" | 0.50" | 1-1/4" |
| 1AA12MB12 | - | 1-1/16-12 | -12 | 2.44" | 1.25" | 0.61" | 1-1/4" |
| 1AA16MB12 | - | 1-5/16-12 | -12 | 2.56" | 1.37" | 0.61" | 1-1/2" |
| 1AA16MB16 | - | 1-5/16-12 | -16 | 2.74" | 1.39" | 0.82" | 1-1/2" |
| 1AA20MB20 | - | 1-5/8-12 | -20 | 3.63" | 1.90" | 1.05" | 1-7/8" |
| 1AA24MB24 | - | 1-7/8-12 | -24 | 3.63" | 1.81" | 1.26" | 2-1/8" |
