1AA3MFA4 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel 45° Elbow (MFA) Crimp Fitting | -03 Male SAE Inverted Flare Swivel x -04 Hose Barb | Steel
Aeroquip® by Danfoss

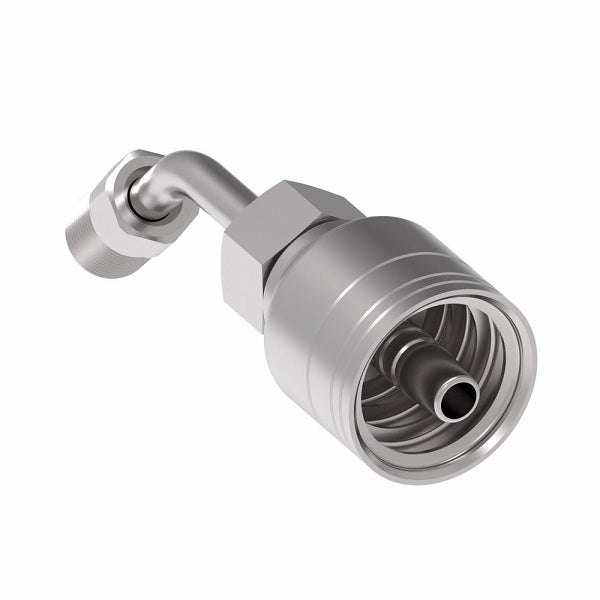

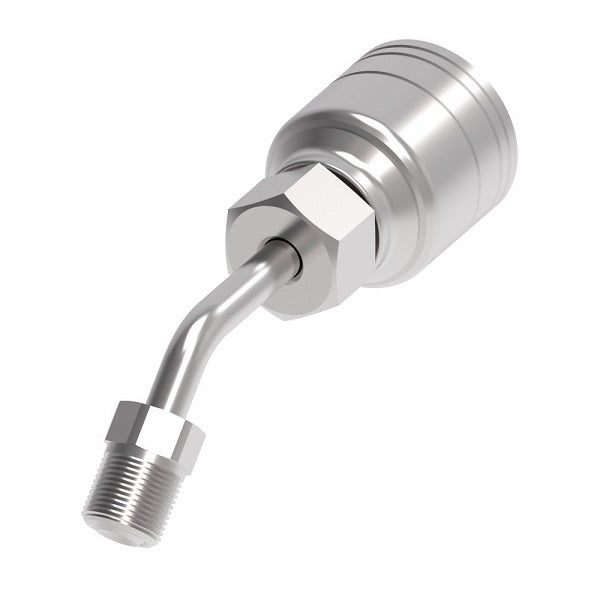

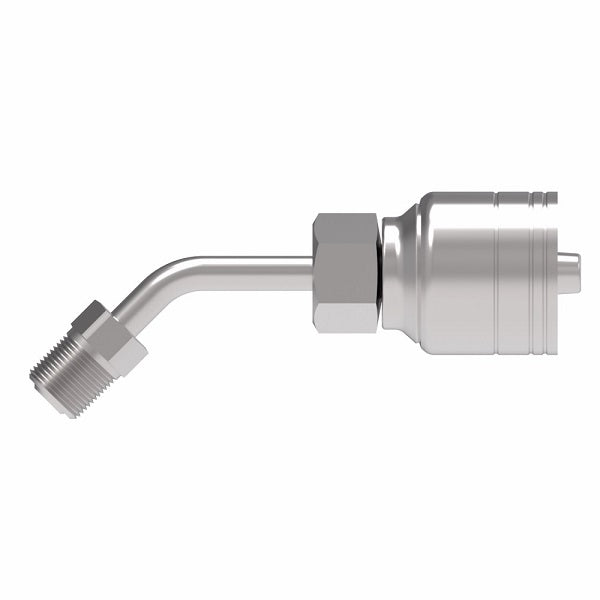

1 & 2 Wire TTC Male SAE Inverted Flare Swivel Crimp Fitting (MFA) - 45° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $22.04 |
| 40–79 | $19.93 |
| 80+ | $17.59 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1AA3MFA4 | 3/8-24 | -04 | 2.75" | 1.96" | 0.10" | 0.69" | 3/8" |
| 1AA4MFA4 | 7/16-24 | -04 | 2.67" | 1.75" | 0.17" | 0.96" | 7/16" |
| 1AA5MFA4 | 1/2-20 | -04 | 2.54" | 1.75" | 0.17" | 0.96" | 1/2" |
| 1AA5MFA6 | 1/2-20 | -06 | 2.88" | 1.89" | 0.24" | 0.96" | 1/2" |
| 1AA6MFA6 | 5/8-18 | -06 | 2.88" | 1.89" | 0.26" | 0.96" | 5/8" |
| 1AA7MFA6 | 11/16-18 | -06 | 2.73" | 1.89" | 0.26" | 0.96" | 11/16" |
| 1AA8MFA8 | 3/4-18 | -08 | 3.07" | 1.90" | 0.38" | 0.93" | 3/4" |
