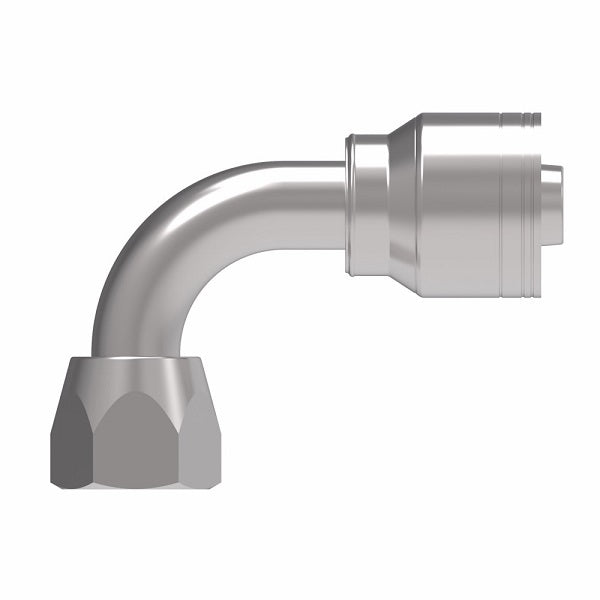

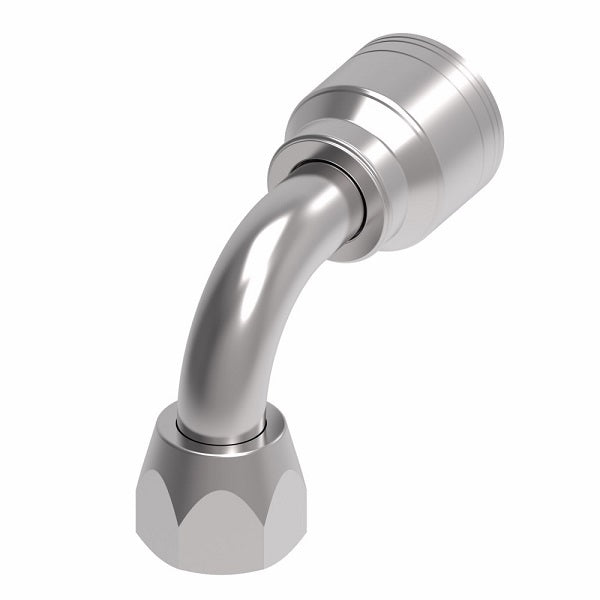

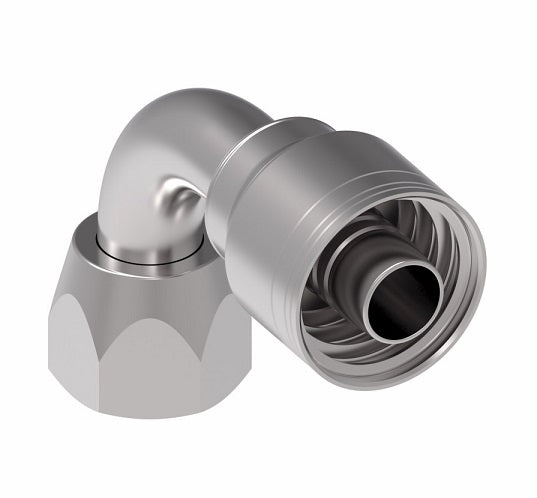

1AA12FJB8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Elbow (FJB) Crimp Fitting | -12 Female JIC 37° Swivel x -08 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fiting (FJB) - 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $84.98 |
| 40–79 | $76.84 |
| 80+ | $67.80 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1AA4FJB4* | 1AA4FJB4TZ | 7/16-20 | -04 | 1.84" | 0.92" | 0.17" | 0.68" | 9/16" |
| 1AA5FJB4* | - | 1/2-20 | -04 | 1.92" | 1.00" | 0.17" | 0.76" | 5/8" |
| 1AA6FJB4 | 1AA6FJB4TZ | 9/16-18 | -04 | 2.00" | 0.99" | 0.17" | 0.90" | 11/16" |
| 1AA4FJB6 | 1AA4FJB6TZ | 7/16-20 | -06 | 1.81" | 0.98" | 0.16" | 0.68" | 9/16" |
| 1AA6FJB6 | 1AA6FJB6TZ | 9/16-18 | -06 | 2.21" | 1.22" | 0.24" | 0.84" | 11/16" |
| 1AA8FJB6* | - | 3/4-16 | -06 | 2.42" | 1.42" | 0.26" | 1.09" | 7/8" |
| 1AA6FJB8 | - | 9/16-18 | -08 | 2.43" | 1.26" | 0.24" | 0.84" | 11/16" |
| 1AA8FJB8* | 1AA8FJB8TZ | 3/4-16 | -08 | 2.59" | 1.42" | 0.37" | 1.09" | 7/8" |
| 1AA10FJB8* | - | 7/8-14 | -08 | 2.78" | 1.61" | 0.38" | 1.19" | 1" |
| 1AA10FJB10* | - | 7/8-14 | -10 | 2.76" | 1.55" | 0.46" | 1.23" | 1" |
| 1AA10FJB12 | - | 7/8-14 | -12 | 2.57" | 1.56" | 0.46" | 1.19" | 1" |
| 1AA12FJB8 | - | 1-1/16-12 | -08 | - | - | - | - | - |
| 1AA12FJB10 | - | 1-1/16-12 | -10 | 3.31" | 2.16" | 0.50" | 1.80" | 1-1/4" |
| 1AA12FJB16 | - | 1-5/8-12 | -16 | 3.77" | 2.45" | 0.82" | 2.75" | 2" |
| 1AA12FJB12 | 1AA12FJB12TZ | 1-1/16-12 | -12 | 3.36" | 2.17" | 0.58" | 1.82" | 1-1/4" |
| 1AA16FJB12 | - | 1-5/16-12 | -12 | 3.37" | 2.18" | 0.61" | 2.39" | 1-1/2" |
| 1AA16FJB16 | 1AA16FJB16TZ | 1-5/16-12 | -16 | 3.56" | 2.87" | 0.81" | 2.39" | 1-1/2" |
| 1AA20FJB20 | 1AA20FJB20TZ | 1-5/8-12 | -20 | 4.25" | 2.52" | 1.01" | 2.75" | 2" |
| 1AA24FJB24 | - | 1-7/8-12 | -24 | 4.63" | 2.81" | 1.26" | 3.17" | 2-1/4" |
* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
