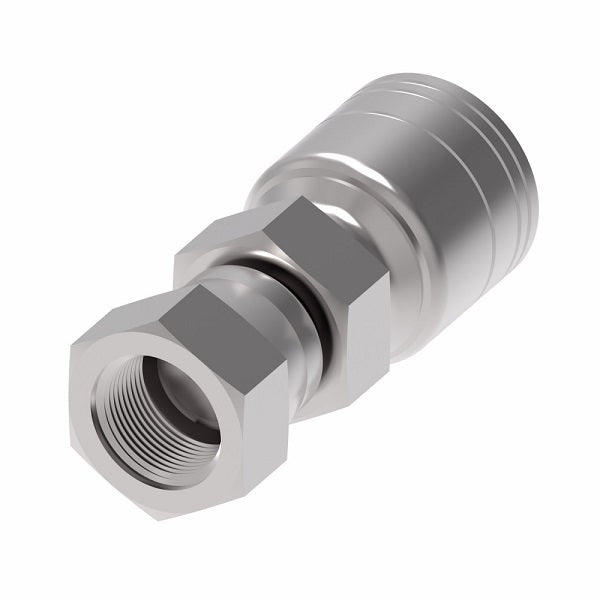

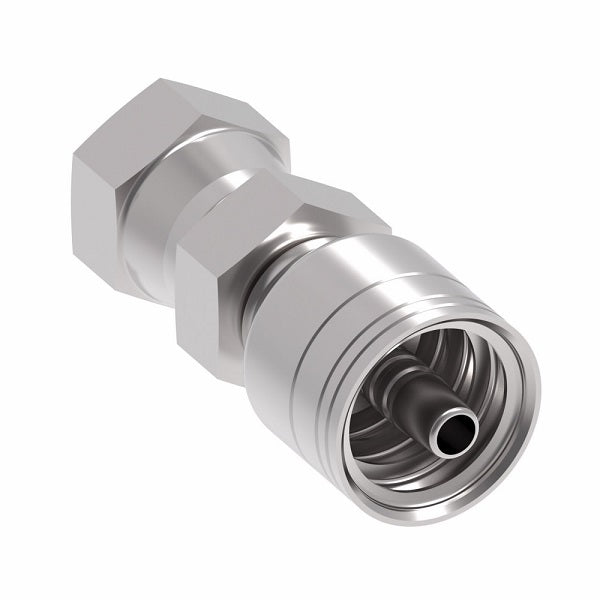

1A8KF8 Aeroquip by Danfoss | 1 & 2 Wire TTC Komatsu Female Swivel (KF) Crimp Fitting | -08 Female Komatsu Swivel x -08 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC Female Komatsu Swivel Crimp Fitting (KF) - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $24.86 |
| 40–79 | $22.48 |
| 80+ | $19.84 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 1 |
Hex 2 |
| 1A4KF4 | M14 x 1.5 | -04 | 2.21" | 1.29" | 1.66" | 0.75" | 0.75" |
| 1A6KF6 | M18 x 1.5 | -06 | 2.38" | 1.38" | 0.26" | 0.94" | 0.87" |
| 1A8KF8 | M22 x 1.5 | -08 | 2.64" | 1.57" | 0.38" | 1.06" | 1.06" |
| 1A10KF10 | M24 x 1.5 | -10 | 2.84" | 1.81" | 0.49" | 1.19" | 1.18" |
| 1A10KF12 | M24 x 1.5 | -12 | 3.01" | 1.83" | 0.49" | 1.26" | 1.18" |
| 1A12KF12 | M30 x 1.5 | -12 | 3.21" | 2.02" | 0.61" | 1.42" | 1.42" |
| 1A16KF16 | M33 x 1.5 | -16 | 3.60" | 2.24" | 0.81" | 1.61" | 1.61" |
| 1A20KF20 | M36 x 1.5 | -20 | 4.46" | 2.73" | 1.05" | 1.81" | 1.81" |
