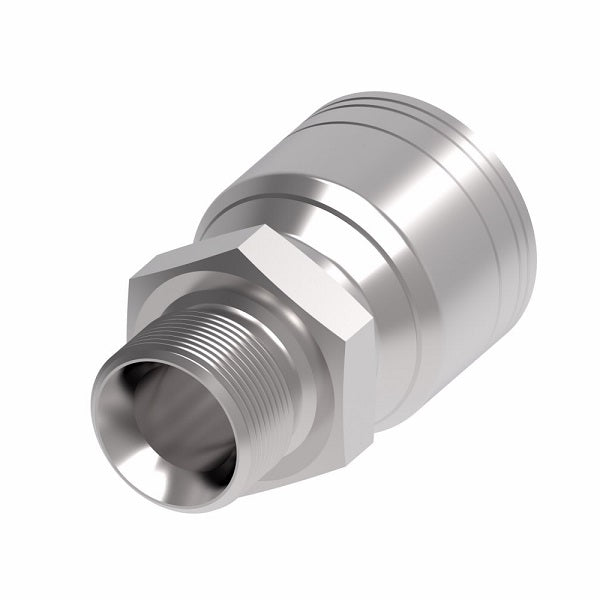

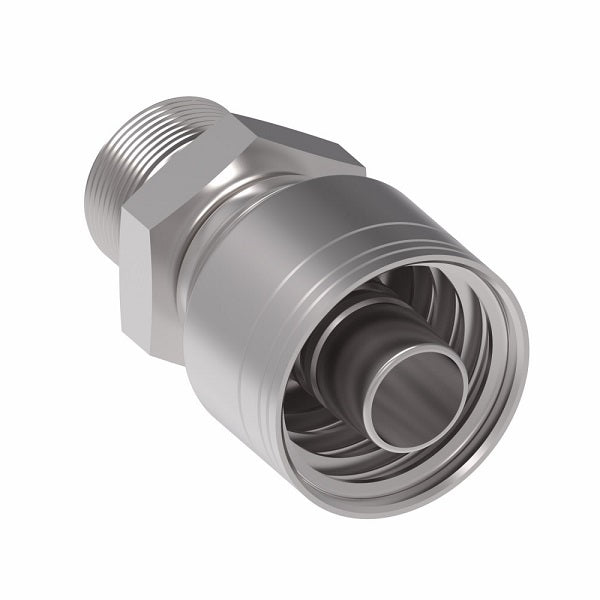

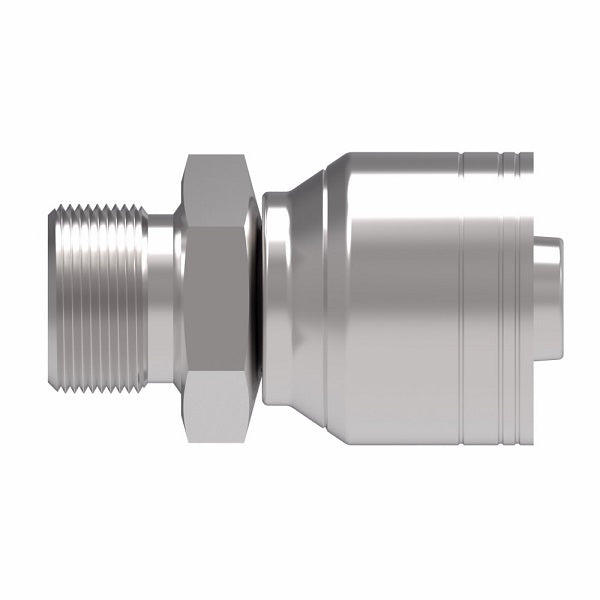

1A8BP8 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Parallel, BSPP (BP) Crimp Fitting | -08 Male BSPP x -08 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC BSP Male Parallel, BSPP Crimp Fitting (BP) - Straight
(Formerly Eaton Aeroquip)
G as part of thread size is ISO Designation for parallel thread.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $22.94 |
| 40–79 | $20.74 |
| 80+ | $18.30 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 2 |
| 1A4BP4 | G 1/4-19 | -04 | 1.74" | 0.82" | 0.16" | 0.75" |
| 1A6BP6 | G 3/8-19 | -06 | 1.90" | 0.91" | 0.26" | 0.87" |
| 1A6BP8 | G 3/8-19 | -08 | 2.20 | 1.04" | 0.38" | 0.87" |
| 1A8BP6 | G 1/2-14 | -06 | 2.06" | 1.07" | 0.26" | 1.06" |
| 1A8BP8 | G 1/2-14 | -08 | 2.28" | 1.11" | 0.38" | 1.06" |
| 1A10BP10 | G 5/8-14 | -10 | 2.44" | 1.25" | 0.50" | 1.18" |
| 1A12BP12 | G 3/4-14 | -12 | 2.48" | 1.29" | 0.61" | 1.26" |
| 1A16BP16 | G1-11 | -16 | 2.79" | 1.44" | 0.81" | 1.61" |
| 1A20BP20 | G 1-1/4-11 | -20 | 3.39" | 1.66" | 1.50" | 1.97" |
