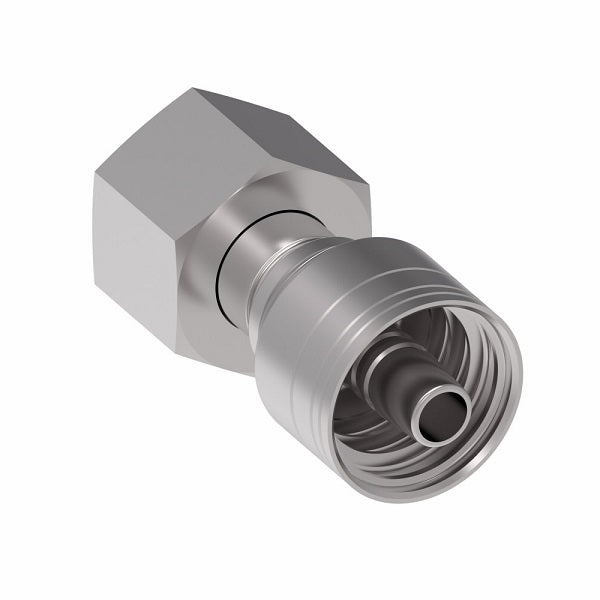

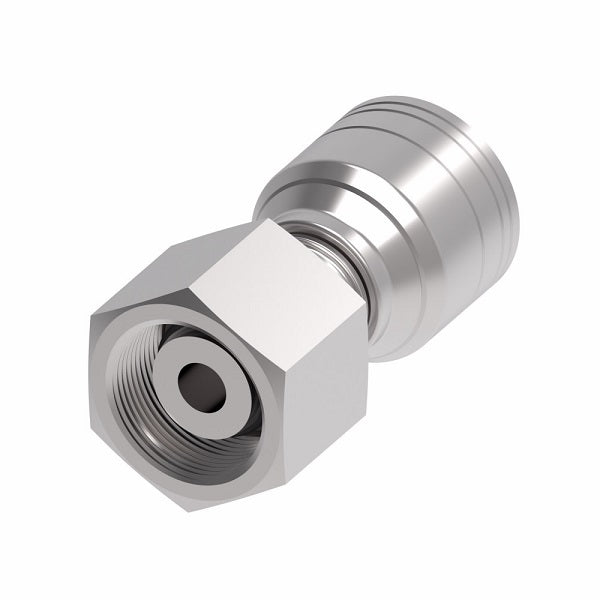

1A6DS4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S10 Female DKO/DIN x -04 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Heavy Duty Crimp Fitting (DS) - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $23.32 |
| 40–79 | $21.09 |
| 80+ | $18.61 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread T |
Tube OD | Hose Size | A | D | EØ | Hex 1 |
| 1A5DS4 | M16 x 1.5 | 8 | -04 | 1.95" | 1.03" | 0.16" | 0.75" |
| 1A6DS4 | M18 X 1.5 | 10 | -04 | 2.00" | 1.08" | 0.16" | 0.87" |
| 1A8DS4 | M20 X 1.5 | 12 | -04 | 2.00" | 1.08" | 0.17" | 0.94" |
| 1A6DS6 | M18 X 1.5 | 10 | -06 | 2.08" | 1.09" | 0.26" | 1.06" |
| 1A8DS6 | M20 x 1.5 | 12 | -06 | 2.12" | 1.12" | 0.26" | 0.94" |
| 1A10DS6 | M22 x 1.5 | 14 | -06 | 2.24" | 1.24" | 0.26" | 1.06" |
| 1A10DS8 | M22 x 1.5 | 14 | -08 | 2.17" | 1.00" | 0.38" | 1.06" |
| 1A12DS8 | M24 x 1.5 | 16 | -08 | 2.46" | 1.29" | 0.38" | 1.18" |
| 1A16DS10 | M30 x 2 | 20 | -10 | 2.63" | 1.48" | 0.50" | 1.42" |
| 1A16DS12 | M30 x 2 | 20 | -12 | 2.37" | 1.19" | 0.55" | 1.42" |
| 1A20DS12 | M36 x 2 | 25 | -12 | 2.83" | 1.64" | 0.61" | 1.81" |
| 1A25DS16 | M42 x 2 | 30 | -16 | 3.09" | 1.44" | 0.81" | 1.97" |
| 1A32DS20 | M52 x 2 | 38 | -20 | 3.69" | 1.96" | 1.05" | 2.36" |
