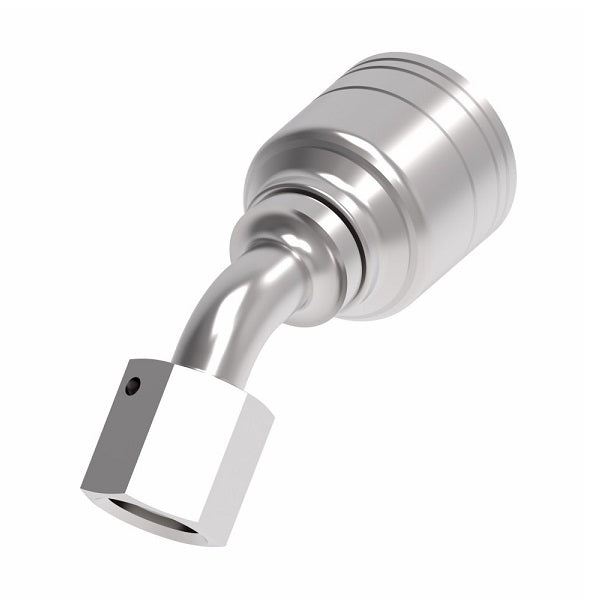

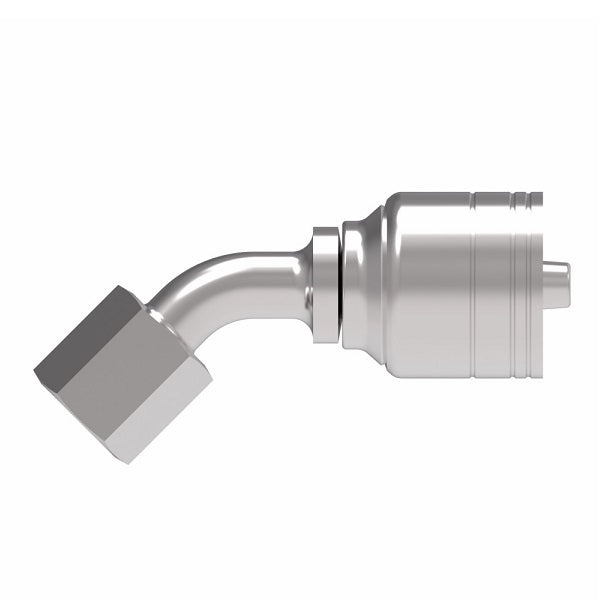

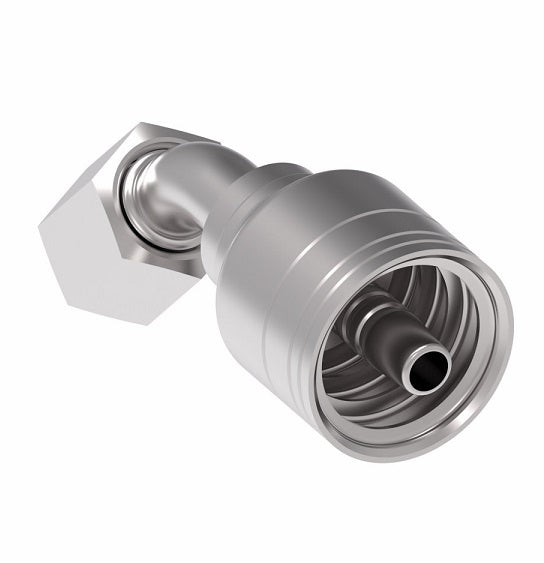

1A5DLA4 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L06 Female DKO/DIN x -04 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty, Crimp Fitting (DLA) - 45° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $45.80 |
| 40–79 | $41.41 |
| 80+ | $36.54 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Tube OD | Hose Size | A | D | EØ | H | Hex 1 |
| 1A5DLA4 | M12X1.5 | - | -04 | - | - | - | - | - |
| 1A6DLA4 | M14 x 1.5 | 8 | -04 | 2.46" | 1.53" | 0.16" | 0.69" | 0.67" |
| 1A8DLA4 | M16 X 1.5 | 10 | -04 | 2.55" | 1.63" | 0.17" | 0.72" | 0.75" |
| 1A8DLA6 | M16 x 1.5 | 10 | -06 | 2.63" | 1.63" | 0.26" | 0.75" | 0.75" |
| 1A10DLA6 | M18 x 1.5 | 12 | -06 | 2.75" | 1.75" | 0.26" | 0.81" | 0.87" |
| 1A12DLA8 | M22 x 1.5 | 15 | -08 | 3.22" | 2.05" | 0.38" | 0.85" | 1.06" |
| 1A16DLA10 | M26 x 1.5 | 18 | -10 | 3.48" | 2.32" | 0.50" | 1.08" | 1.26" |
| 1A20DLA12 | M30 x 2 | 22 | -12 | 3.87" | 2.68" | 0.61" | 1.02" | 1.42" |
| 1A25DLA16 | M36 x 2 | 28 | -16 | 4.72" | 3.37" | 0.81" | 1.32" | 1.61" |
