Sale price$46.28

Aeroquip® by Danfoss

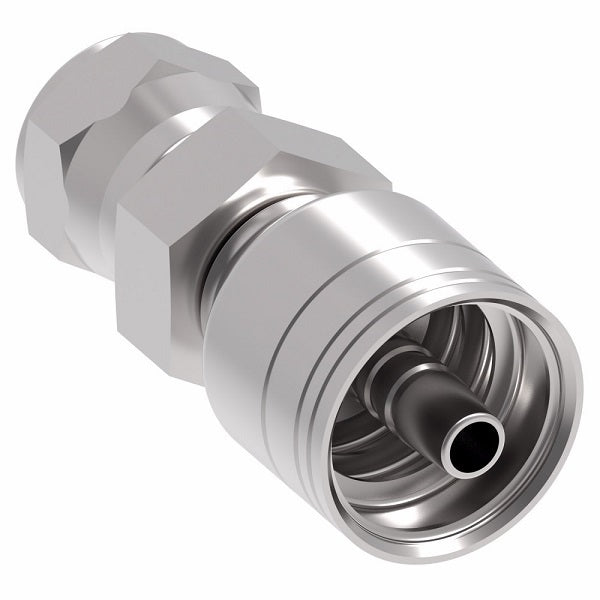

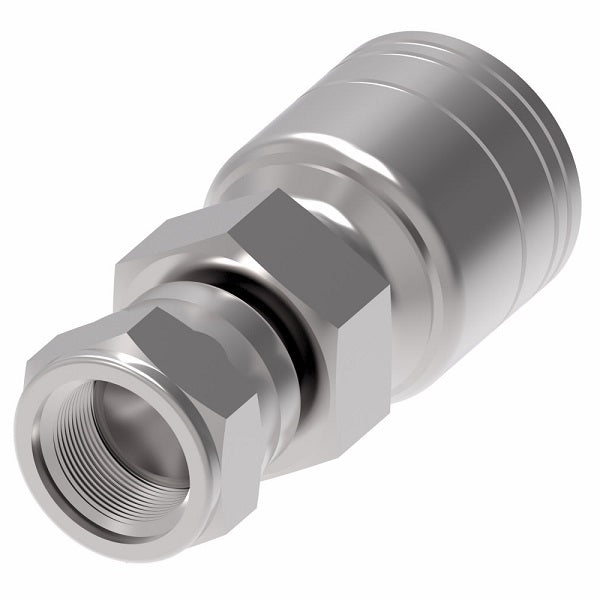

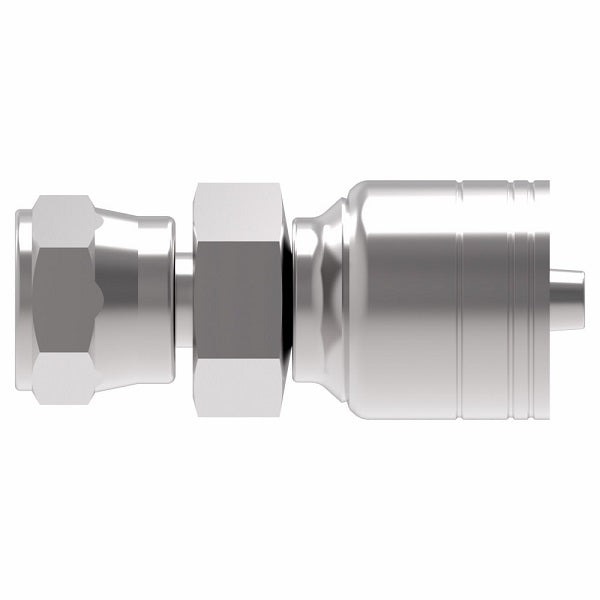

1 & 2 Wire TTC JIS/BSPP Female Swivel Crimp Fitting (JM) - Steel

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable. G as part of thread size is ISO Designation for parallel thread.

In stock
Buy More, Save More!
Quantity Price Each
10–39 $43.50
40–79 $39.34
80+ $34.71
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Steel
Special Properties:
  • Swivel
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
1A4JM4 G 1/4 -04 1.85" 0.93" 0.16" 0.75" 0.75"
1A6JM6 G 3/8 -06 2.01" 1.01" 0.26" 0.87" 0.87"
1A8JM8 G 1/2 -08 2.28" 1.11" 0.38" 1.06" 1.06"
1A12JM12 G 3/4 -12 2.44" 1.25" 0.61" 1.26" 1.42"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
