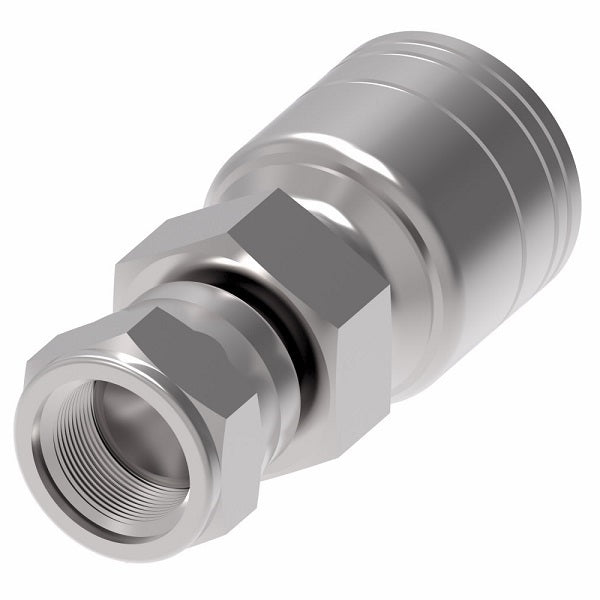

1A20JF20 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS Female Swivel (JF) Crimp Fitting | -20 Female JIS Swivel x -20 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC JIS Female Swivel Crimp Fitting (JF) - Straight
(Formerly Eaton Aeroquip)
G as part of thread size is ISO Designation for parallel thread.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $92.91 |
| 20–59 | $84.01 |
| 60+ | $74.13 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 1 |
Hex 2 |
|
| 1A4JF4 | G 7/16-20 | -04 | 2.09" | 1.08" | 0.17" | 0.75" | 0.75" | |
| 1A6JF6 | G 3/8-19 | -06 | 2.17" | 1.33" | 0.26" | 0.87" | 0.87" | |
| 1A8JF8 | G 1/2-14 | -08 | 2.54" | 1.46" | 0.38" | 1.06" | 1.06" | |
| 1A12JF10 | G 3/4-14 | -10 | 2.78" | 1.78" | 0.50" | 1.26" | 1.42" | |
| 1A12JF12 | G 3/4-14 | -12 | 2.88" | 1.70" | 0.61" | 1.26" | 1.42" | |
| 1A16JF16 | G 1-11 | -16 | 3.29" | 1.94" | 0.81" | 1.61" | 1.61" | |
| 1A20JF20 | G 1-1/4-11 | -20 | 4.02" | 2.29" | 1.05" | 1.97" | 1.81" | |
