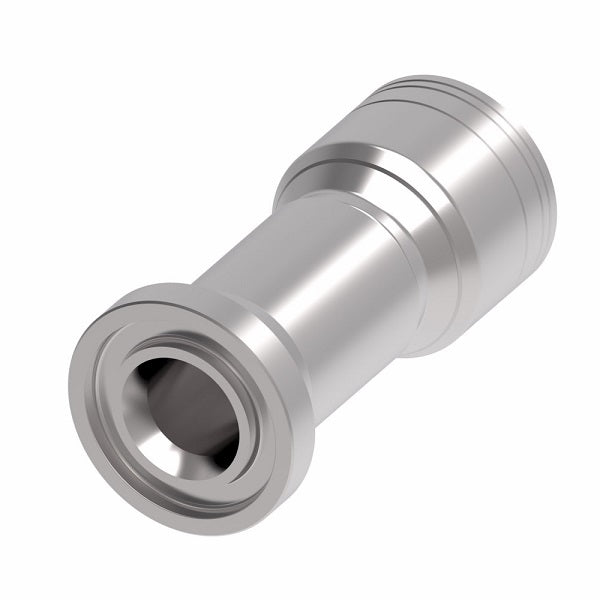

1A20FL12 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange (FL) Crimp Fitting | -20 Code 61 Split Flange x -12 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FL) - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $115.32 |
| 20–59 | $104.28 |
| 60+ | $92.01 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thread Flange Head Dia. KØ |
Hose Size | A | D | EØ | |
| 1A8FL8 | - | 1.19" | -08 | 3.13" | 2.06" | 0.38" | |
| 1A12FL8 | - | 1.50" | -08 | 3.17" | 2.10" | 0.38" | |
| 1A12FL10 | - | 1.50" | -10 | 3.13" | 2.10" | 0.50" | |
| 1A12FL12 | - | 1.50" | -12 | 3.31" | 2.12" | 0.61" | |
| 1A16FL12 | - | 1.75" | -12 | 3.31" | 2.12" | 0.61" | |
| 1A20FL12 | - | 2.00" | -12 | 3.61" | 2.42" | 0.61" | |
| 1A16FL16 | - | 1.75" | -16 | 3.49" | 2.14" | 0.82" | |
| 1A20FL16 | - | 2.00" | -16 | 3.79" | 2.44" | 0.82" | |
| 1A16FL20 | - | 1.75" | -20 | 3.94" | 2.21" | 0.82" | |
| 1A20FL20 | 1A20FL20TZ | 2.00" | -20 | 4.24" | 2.51" | 1.05" | |
| 1A24FL20 | - | 2.38" | -20 | 4.27" | 2.54" | 1.05" | |
| 1A32FL20 | - | 2.81" | -20 | 4.27" | 2.54" | 1.01" | |
| 1A20FL24 | - | 2.00" | -24 | 4.37" | 2.55" | 1.05" | |
| 1A24FL24 | - | 2.38" | -24 | 4.40" | 2.58" | 1.26" | |
| 1A32FL24 | - | 2.81" | -24 | 4.40" | 2.58" | 1.19" | |
| 1A32FL32 | - | 2.81" | -32 | 4.61" | 2.63" | 1.75" | |
| 1A40FL32 | - | 3.31" | -32 | 4.60" | 2.63" | 1.75" | |
