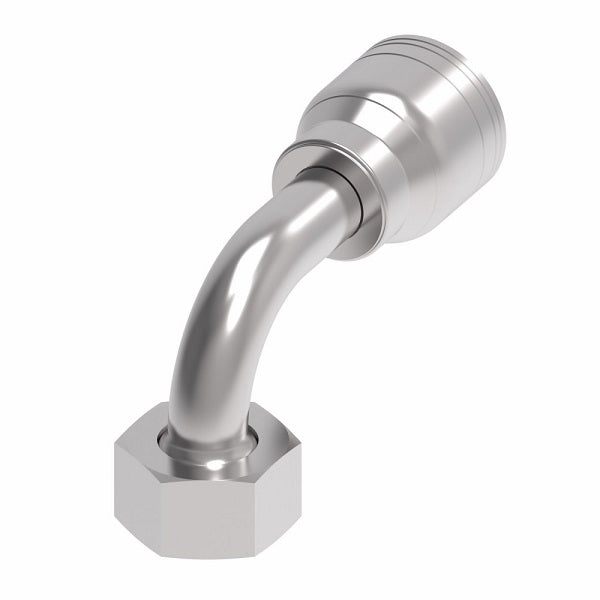

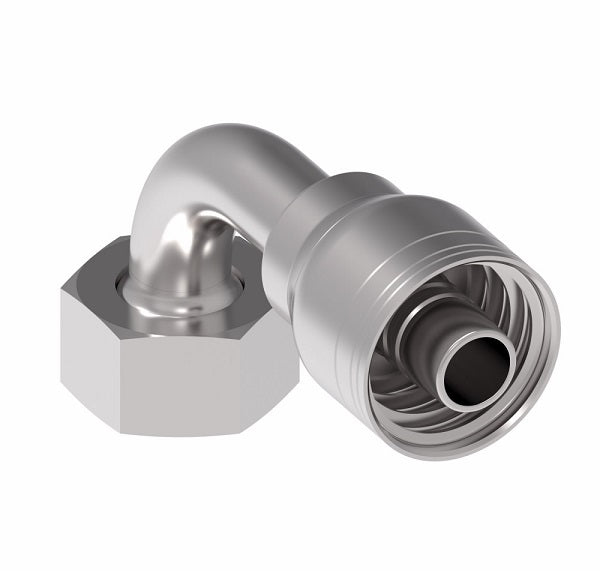

1A20DLB12 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 90° Elbow (DLB) Crimp Fitting | L22 Female DKO/DIN x -12 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty, Crimp Fitting (DLB) - 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $76.59 |
| 40–79 | $69.26 |
| 80+ | $61.11 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Tube OD | Hose Size | A | D | EØ | H | Hex 1 |
| 1A5DLB4 | M12 x 1.5 | 6 | -04 | 1.96" | 1.04" | 0.16" | 1.04" | 0.67" |
| 1A6DLB4 | M14 X 1.5 | 8 | -04 | 2.04" | 1.12" | 0.16" | 1.24" | 0.67" |
| 1A8DLB4 | M16 x 1.5 | 10 | -04 | 2.18" | 1.26" | 0.17" | 1.40" | 0.75" |
| 1A8DLB6 | M16 x 1.5 | 10 | -06 | 2.25" | 1.26" | 0.26" | 1.40" | 0.75" |
| 1A10DLB6 | M18 x 1.5 | 12 | -06 | 2.37" | 1.38" | 0.26" | 1.53" | 0.87" |
| 1A12DLB8 | M22 x 1.5 | 15 | -08 | 2.83" | 1.66" | 0.38" | 1.69" | 1.06" |
| 1A16DLB10 | M26 x 1.5 | 18 | -10 | 3.26" | 2.11" | 0.50" | 2.32" | 1.26" |
| 1A20DLB12 | M30 x 2 | 22 | -12 | 3.74" | 2.55" | 0.61" | 2.12" | 1.42" |
| 1A25DLB16 | M36 x 2 | 28 | -16 | 6.08" | 4.72" | 0.81" | 2.79" | 1.61" |
| 1A32DLB20 | M45 x 2 | 35 | -20 | 4.68" | 2.95" | 1.05" | 2.99" | 1.97" |
| 1A40DLB24 | M52 X 2 | - | -24 | - | - | - | - | - |
