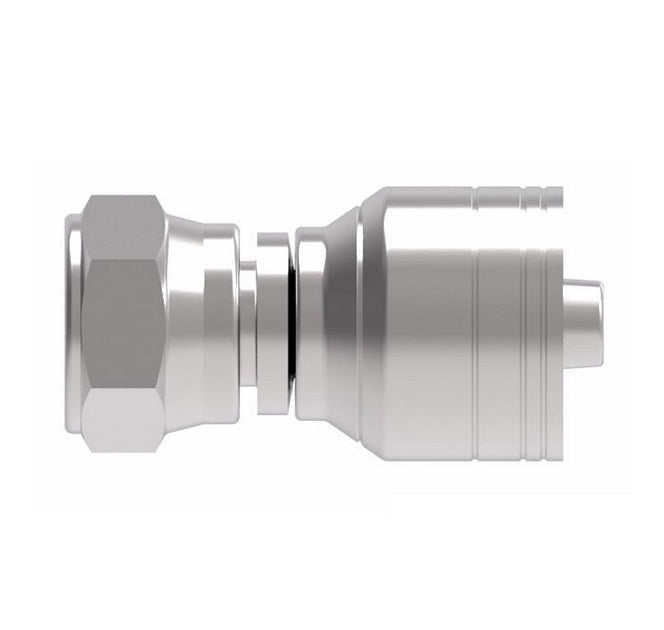

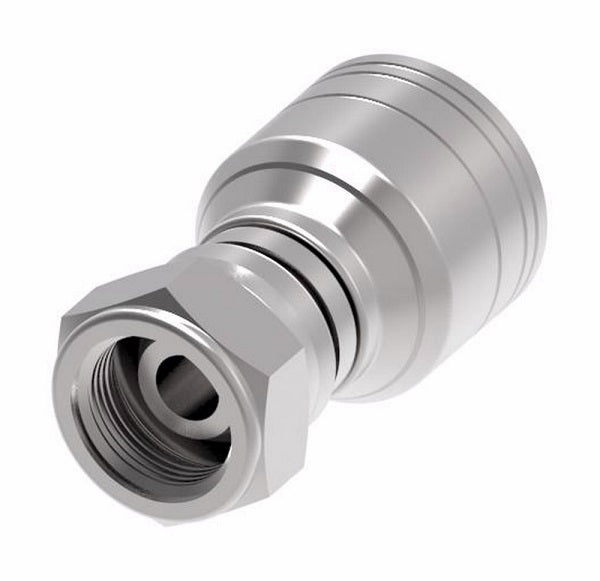

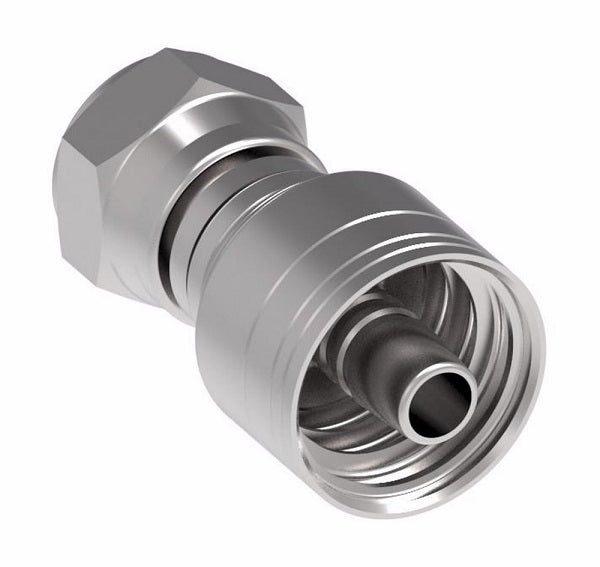

1A20BF20 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel (BF) Crimp Fitting | -20 Female BSPP Swivel x -20 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC JIS/BSPP Female Swivel Crimp Fitting (BF) - Steel
(Formerly Eaton Aeroquip)
The JIS parallel thread and the BSPP connection are interchangeable. G as part of thread size is ISO Designation for parallel thread.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $93.44 |
| 20–59 | $84.49 |
| 60+ | $74.55 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 1 |
|
| 1A4BF4 | G 1/4 | -04 | 1.66" | 0.74" | 0.16" | 0.75" | |
| 1A6BF4 | G 3/8 | -04 | 1.79" | 0.87" | 0.17" | 0.87" | |
| 1A6BF6 | G 3/8 | -06 | 1.83" | 0.83" | 0.26" | 0.87" | |
| 1A8BF6 | G 1/2 | -06 | 1.88" | 0.89" | 0.26" | 1.06" | |
| 1A8BF8 | G 1/2 | -08 | 2.11" | 0.94" | 0.38" | 1.06" | |
| 1A10BF8 | G 5/8 | -08 | 2.22" | 1.05" | 0.38" | 1.18" | |
| 1A10BF10 | G 5/8 | -10 | 2.13" | 0.97" | 0.50" | 1.18" | |
| 1A12BF10 | G 3/4 | -10 | - | - | - | - | |
| 1A12BF12 | G 3/4 | -12 | 2.18" | 1.00" | 0.61" | 1.26" | |
| 1A16BF16 | G 1 | -16 | 2.44" | 1.09" | 0.81" | 1.61" | |
| 1A20BF20 | G 1-1/4 | -20 | 2.90" | 1.16" | 1.05" | 1.97" | |
