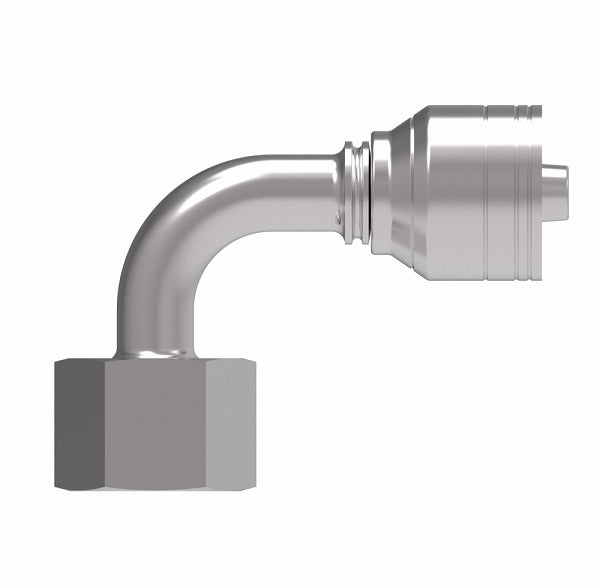

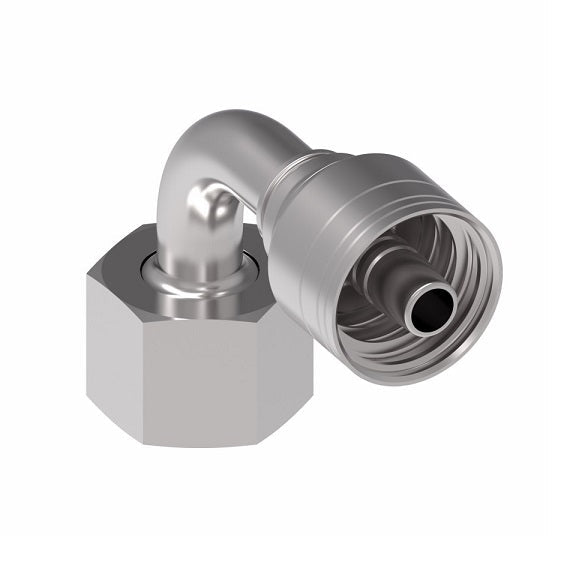

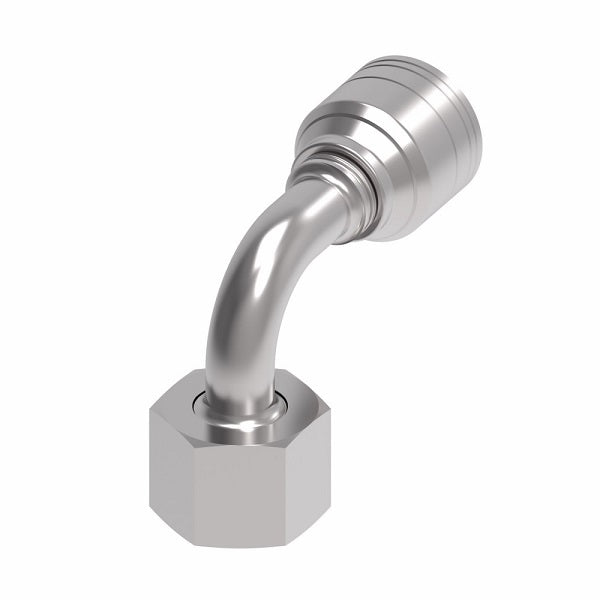

1A16DSB10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S16 Female DKO/DIN x -10 Hose Barb | Steel
1A16DSB10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S16 Female DKO/DIN x -10 Hose Barb | Steel
1A16DSB10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S16 Female DKO/DIN x -10 Hose Barb | Steel

1A16DSB10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S16 Female DKO/DIN x -10 Hose Barb | Steel

Sale price$73.74
In stock
Buy More, Save More!
Quantity Price Each
10–39 $69.32
40–79 $62.68
80+ $55.31
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • S16 Female DIN
  • 5/8in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Thread
T		 Tube OD Hose Size A D EØ H Hex 1
1A5DSB4 - - -04 - - - - -
1A6DSB4 M18 x 1.5 10 -04 2.14" 1.22" 0.16" 1.32" 0.87"
1A6DSB6 M18 x 1.5 - -04 - - - - -
1A8DSB6 M20 x 1.5 12 -06 2.20" 1.36" 0.26" 1.39" 0.94"
1A10DSB6 M22 x 1.5 14 -06 2.35" 1.52" 0.26" 1.65" 1.06"
1A12DSB8 M24 x 1.5 16 -08 3.06" 1.89" 0.38" 1.78" 1.18"
1A16DSB10 M30 x 2 20 -10 3.23" 2.07" 0.50" 2.05" 1.42"
1A20DSB12 M36 x 2 25 -12 3.66" 2.47" 0.61" 2.54" 1.81"
1A25DSB16 M42 x 2 30 -16 4.09" 2.74" 0.81" 2.91" 1.97"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
