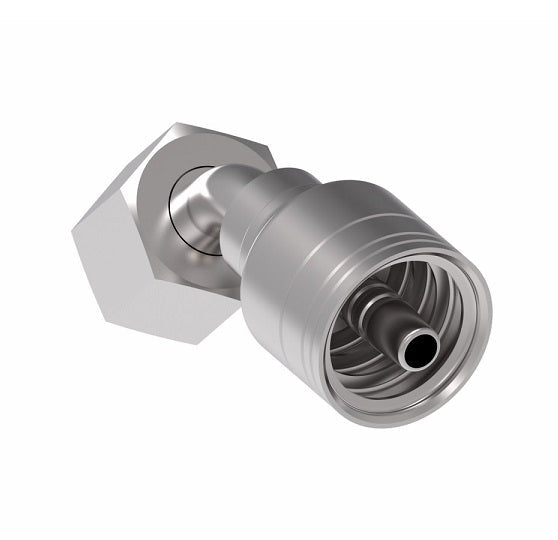

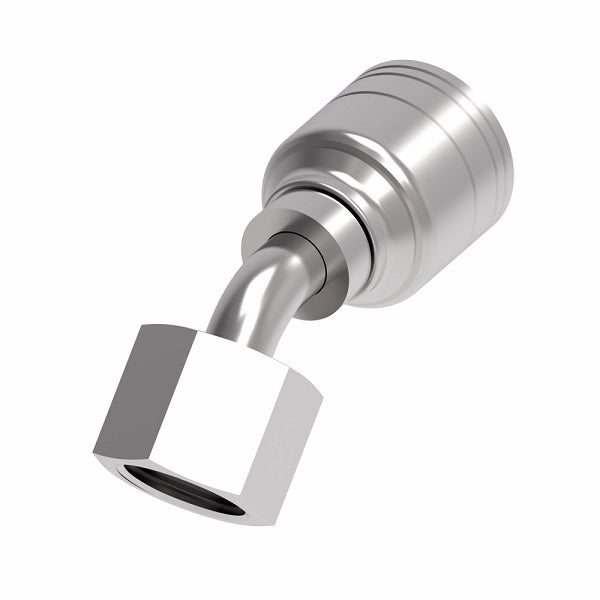

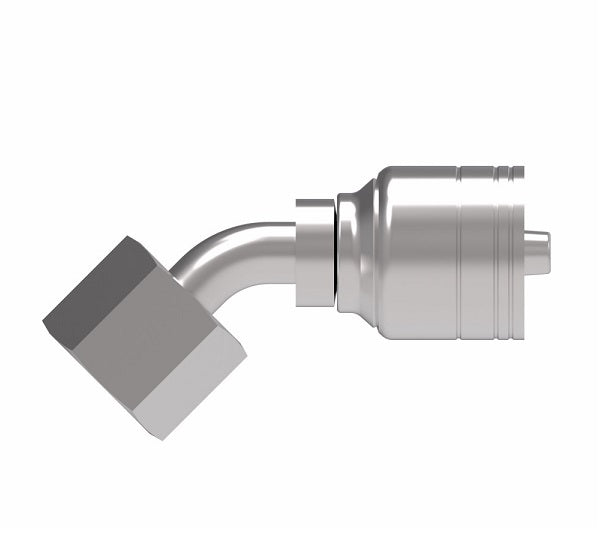

1A12DSA8 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S16 Female DKO/DIN x -08 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Heavy Duty, Crimp Fitting (DSA) - 45° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $39.86 |
| 40–79 | $36.04 |
| 80+ | $31.80 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Tube OD | Hose Size | A | D | EØ | H | Hex 1 |
| 1A6DSA4 | M18 x 1.5 | 10 | -04 | 2.42" | 1.50" | 0.16" | 0.67" | 0.87" |
| 1A8DSA6 | M20 x 1.5 | 12 | -06 | 2.69" | 1.69" | 0.26" | 0.75" | 0.94" |
| 1A10DSA6 | M22 x 1.5 | 14 | -06 | 2.71" | 1.71" | 0.26" | 0.79" | 1.06" |
| 1A12DSA8 | M24 x 1.5 | 16 | -08 | 3.14" | 1.97" | 0.38" | 0.90" | 1.18" |
| 1A16DSA10 | M30 x 2 | 20 | -10 | 3.51" | 2.36" | 0.50" | 1.02" | 1.42" |
| 1A20DSA12 | M36 x 2 | 25 | -12 | 4.23" | 3.04" | 0.61" | 1.28" | 1.81" |
| 1A25DSA16 | M42 x 2 | 30 | -16 | 4.78" | 3.42" | 0.81" | 1.48" | 2.16" |
