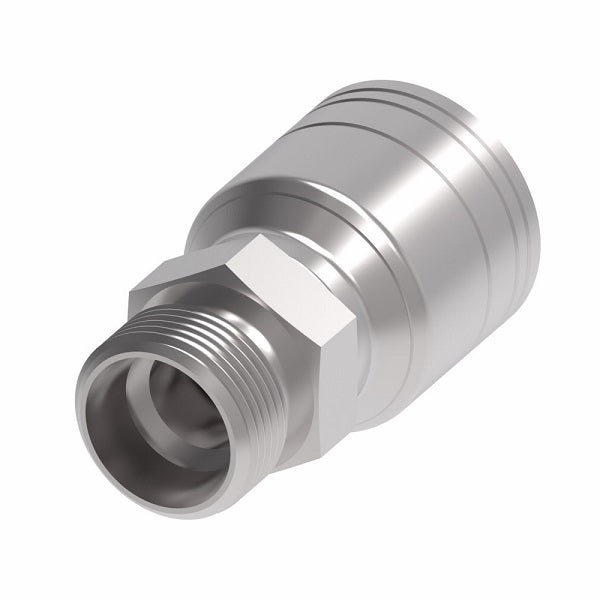

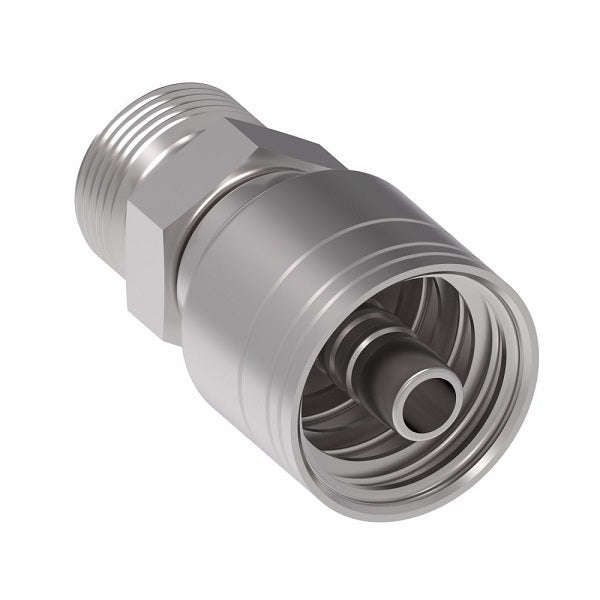

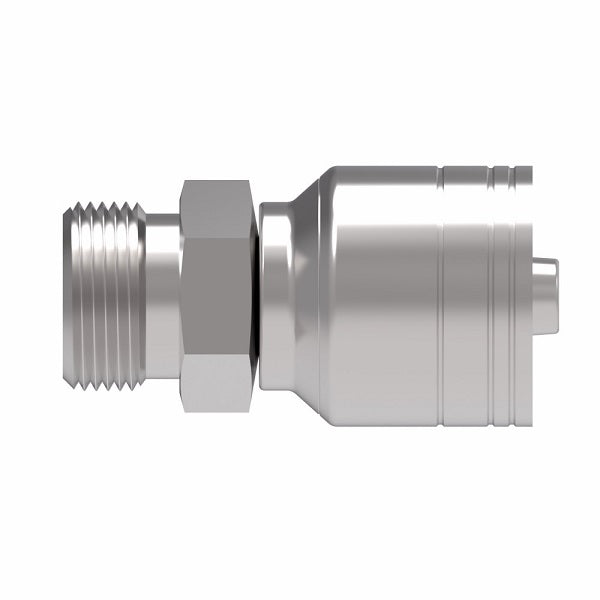

1A12DK8 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO 24° Male, Light Duty (DK) Crimp Fitting | L15 Male DKO/DIN x -08 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN 24° Male, Light Duty Crimp Fitting (DK) - Straight
(Formerly Eaton Aeroquip)
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread T |
Tube OD | Hose Size | A | D | EØ | Hex 2 |
|
| 1A5DK4 | M12 x 1.5 | 6 | -04 | 1.76" | 0.84" | 0.16" | 0.47" | |
| 1A6DK4 | M14 x 1.5 | 8 | -04 | 1.75" | 0.83" | 0.16" | 0.55" | |
| 1A8DK4 | M16 X 1.5 | 10 | -04 | 1.81" | 0.89" | 0.17" | 0.67" | |
| 1A8DK6 | M16 x 1.5 | 10 | -06 | 2.05" | 1.05" | 0.26" | 0.67" | |
| 1A10DK6 | M18 x 1.5 | 12 | -06 | 1.93" | 0.93" | 0.26" | 0.75" | |
| 1A12DK8 | M22 x 1.5 | 15 | -08 | 2.20" | 1.03" | 0.38" | 0.94" | |
| 1A16DK10 | M26 x 1.5 | 18 | -10 | 2.20" | 1.05" | 0.50" | 1.06" | |
| 1A20DK12 | M30 x 2 | 22 | -12 | 2.44" | 1.25" | 0.61" | 1.26" | |
| 1A25DK16 | M36 x 2 | 28 | -16 | 2.60" | 1.24" | 0.81" | 1.61" | |
| 1A32DK20 | M45 x 2 | 35 | -20 | 3.12" | 1.39" | 1.05" | 1.81" | |
