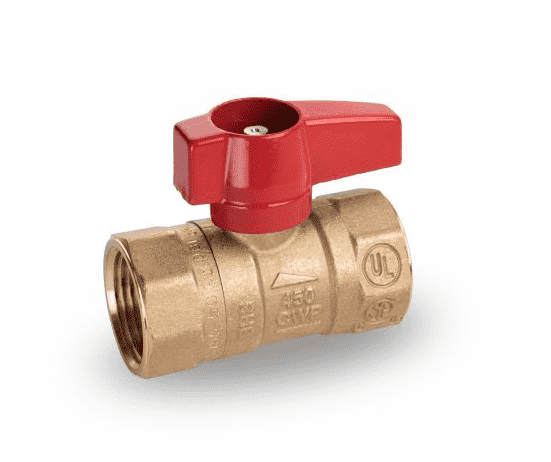

195F41 by RuB Inc. | Gas Cock Gas Service Ball Valve | 1" Female NPT x 1" Female NPT | with Aluminum Red Wedge Handle | Brass | Pack of 12

195F41 by RuB Inc. | Gas Cock Gas Service Ball Valve | 1" Female NPT x 1" Female NPT | with Aluminum Red Wedge Handle | Brass | Pack of 12

Sale price$243.83

RuB Inc. - Gas Service Ball Valves - S.195 Series - Female NPT x Female NPT - Gas Cock with Aluminum Red Wedge Handle

Package Quantity: 12 Units

Buy More, Save More!
Quantity Price Each
5–14 $229.20
15–29 $207.26
30+ $182.87
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Female NPT
  • 1in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Handle stops on body to avoid stresses at stem
  • Chrome plated brass ball for longer life
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Blowout-proof nickel plated brass stem
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • Standard port for compact design
Handle:
  • Aluminum T-handle enameled red
  • Handle removable with valve in service
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • Maximum working pressure 600 PSI (CWP)
  • -40°F/+350°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in Compliance with:
  • Canadian standards Association (United States, Canada)
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Complaint (Russia)
  • Underwriters Laboratories (United States & Canada)
  • Meeting WW-V-35C Federal U.S. Specification
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G A H CH
195C41 3/8" 3/8" 0.393" 0.472" 1.772" 0.886" 1.299" 1.437" 0.787"
195D41 1/2" 1/2" 0.453" 0.610" 2.126" 1.043" 1.299" 1.535" 0.984"
195E41 3/4" 3/4" 0.590" 0.669" 2.441" 1.220" 1.299" 1.614" 1.220"
195F41 1" 1" 0.787" 0.827" 2.835" 1.417" 1.299" 1.752" 1.496"

*DN shows the nominal flow diameter.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
