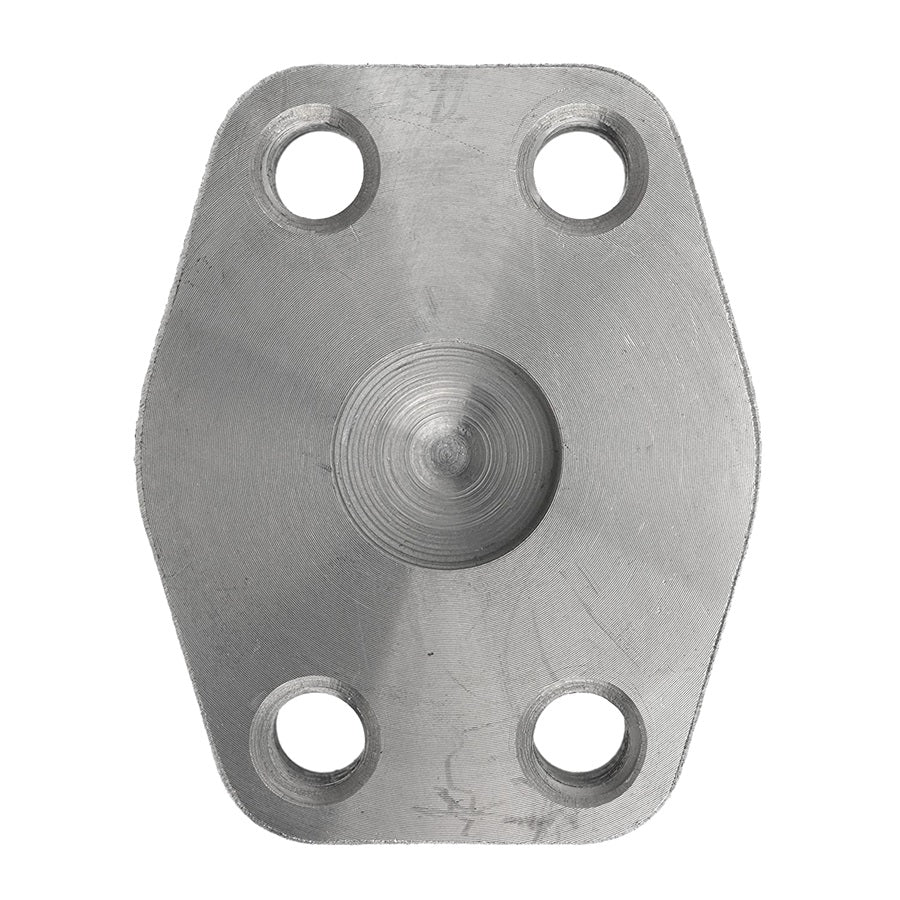

1943-61-48 by Brennan Inc. | -48 Flat Face Flange Pad Plug | Code 61 | Steel
Brennan Inc.
Flange Fittings: 1943-61 - Flat Face Flange Pad Plug (Code 61)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $96.68 |
| 20–59 | $87.42 |
| 60+ | $77.14 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Flange Size | A | B | C | D | E | J Min. | J Max. | K1 Drill | K2 Thread |
| 1943-61-08 | Steel | - | - | - | - | - | - | - | - | - | - |
| 1943-61-12 | Steel | 3/4" | 2.063" | 2.563" | 0.875" | 1.875" | 0.750" | 1.250" | 1.255" | 0.406" | 3/8-16" |
| 1943-61-16 | Steel | 1" | 2.313" | 2.750" | 1.031" | 2.063" | 0.880" | 1.560" | 1.565" | 0.406" | 3/8-16" |
| 1943-61-20 | Steel | 1-1/4" | 2.875" | 3.125" | 1.188" | 2.313" | 0.940" | 1.750" | 1.755" | 0.469" | 7/16-14" |
| 1943-61-24 | Steel | 1-1/2" | 3.250" | 3.688" | 1.406" | 2.750" | 1.190" | 2.115" | 2.125" | 0.531" | 1/2-13" |
| 1943-61-32 | Steel | 2" | 3.813" | 4.000" | 1.688" | 3.063" | 1.440" | 2.490" | 2.500" | 0.531" | 1/2-13" |
| 1943-61-40 | Steel | 2-/2" | 4.281" | 4.500" | 2.000" | 3.500" | 1.820" | 2.995" | 3.005" | 0.531" | 1/2-13" |
| 1943-61-48 | Steel | 3" | 5.156" | 5.313" | 2.438" | 4.188" | 2.190" | 3.615" | 3.625" | 0.656" | 5/8-11" |
| 1943-61-56 | Steel | - | - | - | - | - | - | - | - | - | - |
| 1943-61-64 | Steel | - | - | - | - | - | - | - | - | - | - |
