1939-61-24-24 by Brennan Inc. | -24 Flat Socket Block Tube x Code 61 -24 O-Ring Face Flange | Steel
Brennan Inc.

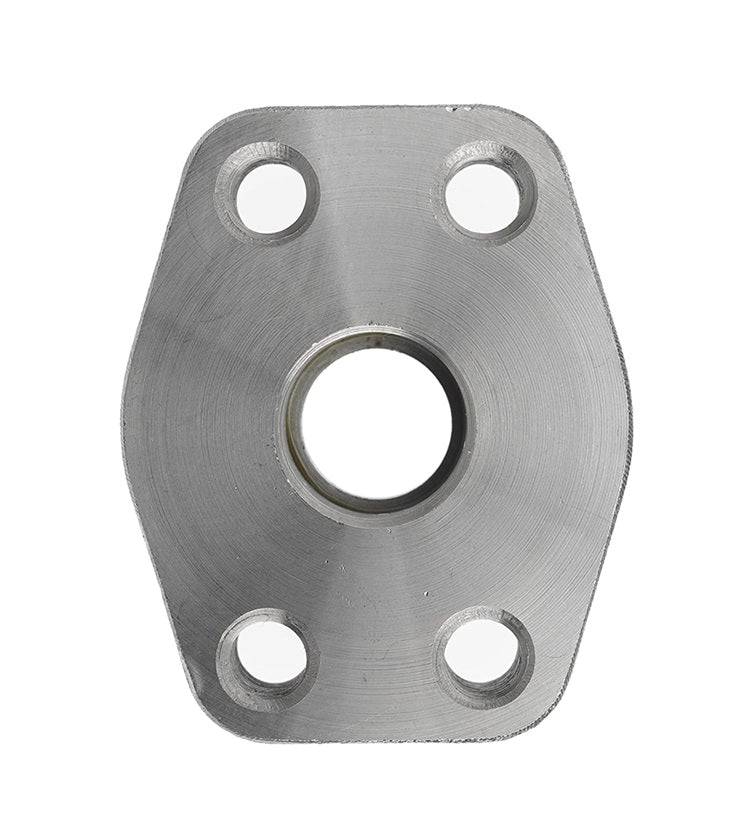

Flange Fittings: 1938-61 - Flat Socket Block Tube x O-Ring Face Flange (Code 61)
Product Data:
Ends Configuration:
Material(s):
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Pipe Size | Flange Size | A | B | C | D | E | F | G | H | J Min. | J Max. | K1 Drill | K2 Thread |
| 1938-61-12-12 | Steel | 3/4" | 3/4" | 2.06" | 2.56" | 0.875" | 1.875" | 0.750" | 0.560" | 0.752" | 0.630" | 1.250" | 1.255" | 0.406" | 3/8-16" |
| 1938-61-16-12 | Steel | 1" | 3/4" | 2.060" | 2.560" | 0.875" | 1.875" | 0.750" | 0.560" | 1.002" | 0.75" | 1.250" | 1.255" | 0.406" | 3/8-16" |
| 1938-61-16-16 | Steel | 1" | 1" | 2.310" | 2.750" | 1.031" | 2.062" | 0.880" | 0.630" | 1.002" | 0.880" | 1.560" | 1.565" | 0.406" | 3/8-16" |
| 1938-61-20-16 | Steel | 1-1/4" | 1" | 2.31" | 2.75" | 1.031" | 2.062" | 0.880" | 0.630" | 1.252" | 1.000" | 1.560" | 1.565" | 0.406" | 3/8-16" |
| 1938-61-20-20 | Steel | 1-1/4" | 1-1/4" | 2.88" | 3.12" | 1.188" | 2.312" | 0.940" | 0.690" | 1.252" | 1.130" | 1.750" | 1.755" | 0.469" | 7/16-14" |
| 1938-61-24-20 | Steel | 1-1/2" | 1-1/4" | 2.880" | 3.120" | 1.188" | 2.312" | 0.940" | 0.690" | 1.502" | 1.250" | 1.750" | 1.755" | 0.469" | 7/16-14" |
| 1938-61-24-24 | Steel | 1-1/2" | 1-1/2" | 3.250" | 3.690" | 1.406" | 2.750" | 1.190" | 0.750" | 1.502" | 1.380" | 2.115" | 2.125" | 0.531" | 1/2-13" |
| 1938-61-28-24 | Steel | 1-3/4" | 1-1/2" | 3.25" | 3.69" | 1.406" | 2.750" | 1.190" | 0.750" | 1.752" | 1.500" | 2.115" | 2.125" | 0.531" | 1/2-13" |
| 1938-61-32-32 | Steel | 2" | 2" | 3.810" | 4.000" | 1.688" | 3.062" | 1.375" | 0.875" | 2.002" | 1.88" | 2.490" | 2.500" | 0.531" | 1/2-13" |
| 1938-61-36-32 | Steel | 2-1/4" | 2" | 3.81" | 4.00" | 1.688" | 3.062" | 1.375" | 0.875" | 2.252" | 2.000" | 2.490" | 2.500" | 0.531" | 1/2-13" |
