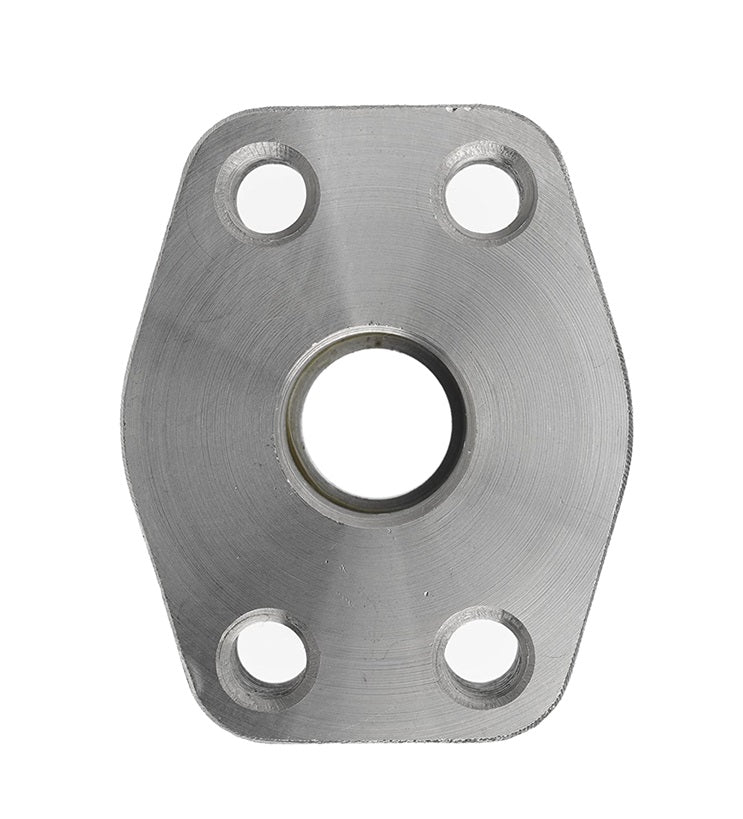

Flange Fittings: 1938-62 - Flat Socket Block Tube x O-Ring Face Flange (Code 62)
Product Data:
Ends Configuration:
Material(s):
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Pipe Size | Flange Size | A | B | C | D | E | F | G | H | J Min. | J Max. | K1 Drill | K2 Thread |
| 1938-62-12-12 | Steel | 3/4" | 3/4" | 2.38" | 2.81" | 0.937" | 2.000" | 1.250" | 0.560" | 0.752" | 0.630" | 1.250" | 1.255" | 0.406" | 3/8-16" |
| 1938-62-16-12 | Steel | 1" | 3/4" | 2.380" | 2.810" | 0.937" | 2.000" | 1.250" | 0.560" | 1.002" | 0.75" | 1.250" | 1.255" | 0.406" | 3/8-16" |
| 1938-62-16-16 | Steel | 1" | 1" | 2.750" | 3.190" | 1.093" | 2.250" | 1.500" | 0.630" | 1.002" | 0.880" | 1.560" | 1.565" | 0.469" | 7/16-14" |
| 1938-62-20-16 | Steel | 1-1/4" | 1" | 2.75" | 3.19" | 1.093" | 2.250" | 1.500" | 0.630" | 1.252" | 1.000" | 1.560" | 1.565" | 0.469" | 7/16-14" |
| 1938-62-20-20 | Steel | 1-1/4" | 1-1/4" | 3.06" | 3.75" | 1.250" | 2.625" | 1.500" | 0.690" | 1.252" | 1.130" | 1.750" | 1.755" | 0.531" | 1/2-13" |
| 1938-62-24-20 | Steel | 1-1/2" | 1-1/4" | 3.060" | 3.750" | 1.250" | 2.625" | 1.500" | 0.690" | 1.502" | 1.250" | 1.750" | 1.755" | 0.531" | 1/2-13" |
| 1938-62-24-24 | Steel | 1-1/2" | 1-1/2" | 3.750" | 4.440" | 1.437" | 3.125" | 1.750" | 0.750" | 1.502" | 1.380" | 2.115" | 2.125" | 0.656" | 5/8-11" |
| 1938-62-28-24 | Steel | 1-3/4" | 1-1/2" | 3.750" | 4.440" | 1.437" | 3.125" | 1.750" | 0.750" | 1.752" | 1.500" | 2.115" | 2.125" | 0.656" | 5/8-11" |
| 1938-62-32-32 | Steel | 2" | 2" | 4.500" | 5.250" | 1.750" | 3.812" | 1.750" | 0.875" | 2.002" | 1.88" | 2.490" | 2.500" | 0.781" | 3/4-10" |
| 1938-62-36-32 | Steel | 2-1/4" | 2" | 4.50" | 5.25" | 1.750" | 3.812" | 1.750" | 0.875" | 2.252" | 2.000" | 2.490" | 2.500" | 0.781" | 3/4-10" |
