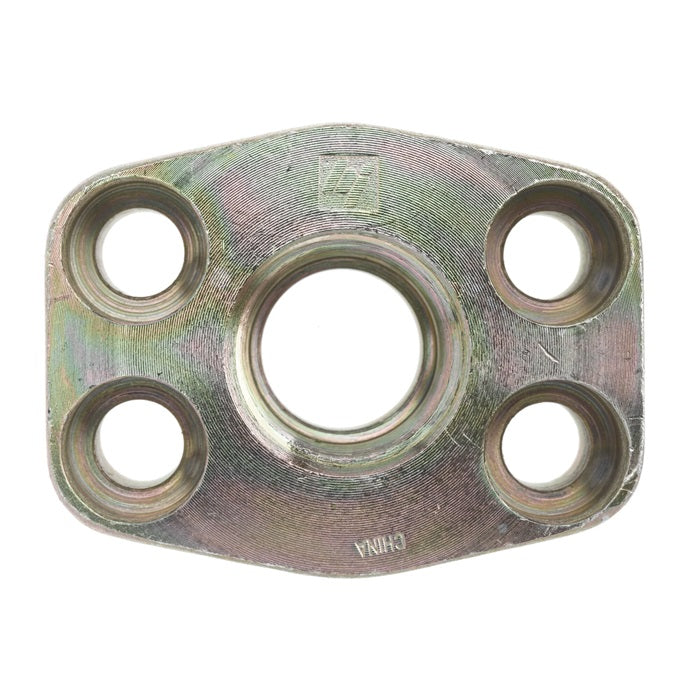

1929-62-20-20-K by Brennan Inc. | -20 Female O-Ring Boss x -20 Code 62 O-Ring Flange | with Bolt Kit | Steel
Brennan Inc.
Flange Fittings: 1929-62-K - Female O-Ring Boss x O-Ring Flange (Code 62) with Bolt Kit
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $78.54 |
| 20–59 | $71.02 |
| 60+ | $62.66 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Pipe Size | Flange Size | A | B | C | D | E | G Thread | H | J Min. | J Max. | K1 Drill | K2 Thread |
| 1929-62-08-08-K | Steel | 1/2" | 1/2" | 1.940" | 2.30" | 0.718" | 1.594" | 1.25" | 3/4-16" | 0.50" | 1.000" | 1.005 | 0.344 | 5/16-18 |
| 1929-62-12-12-K | Steel | 3/4" | 3/4" | 2.380" | 2.81" | 0.937" | 2.000" | 1.25" | 1-1/16-12" | 0.75" | 1.250" | 1.255 | 0.406 | 3/8-16 |
| 1929-62-16-16-K | Steel | 1" | 1" | 2.750" | 3.19" | 1.093" | 2.250" | 1.50" | 1-5/16-12" | 1.00" | 1.560" | 1.565 | 0.469 | 7/16-14 |
| 1929-62-20-20-K | Steel | 1-1/4" | 1-1/4" | 3.060" | 3.75" | 1.25" | 2.625" | 1.50" | 1-5/8-12" | 1.25 | 1.750" | 1.755" | 0.531" | 1/2-13 |
| 1929-62-24-24-K | Steel | 1-1/2" | 1-1/2" | 3.750" | 4.44" | 1.437" | 3.125" | 1.75" | 1-7/8-12" | 1.50" | 2.115" | 2.125 | 0.656 | 5/8-11 |
| 1929-62-32-32-K | Steel | 2" | 2" | 4.50" | 5.25" | 1.750" | 3.812" | 1.75" | 2-1/2-12" | 2.00" | 2.490" | 2.50 | 0.781 | 3/4-10 |
