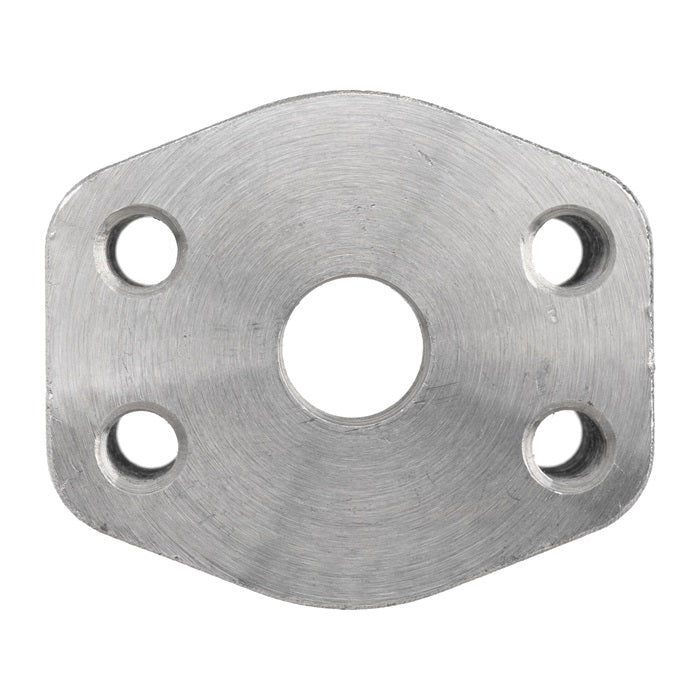

Flange Fittings: 1928-61 - Female Pipe x Female Flat Face Flange (Code 61)
Product Data:
Ends Configuration:
Material(s):
 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Pipe Size | Flange Size | A | B | C | D | E | G NPTF | H | J Min. | J Max. | K1 Drill | K2 Thread |
| 1928-61-08-08 | Steel | 1/2" | 1/2" | 1.82" | 2.17" | 0.688" | 1.500" | 1.25" | 1/2-14" | 0.50" | 1.000" | 1.005 | 0.344 | 5/16-18 |
| 1928-61-12-12 | Steel | 3/4" | 3/4" | 2.06" | 2.69" | 0.875" | 1.875" | 1.25" | 3/4-14" | 0.75" | 1.250" | 1.255 | 0.406 | 3/8-16 |
| 1928-61-16-16 | Steel | 1" | 1" | 2.31" | 2.88" | 1.031" | 2.062" | 1.50" | 1-11-1/2" | 1.00" | 1.560" | 1.565 | 0.406 | 3/8-16 |
| 1928-61-20-20 | Steel | 1-1/4" | 1-1/4" | 2.88" | 3.25" | 1.188" | 2.312" | 1.50" | 1-1/4-11-1/2" | 1.25 | 1.750" | 1.755" | 0.469" | 7/16-14 |
| 1928-61-24-24 | Steel | 1-1/2" | 1-1/2" | 3.25" | 3.81" | 1.406" | 2.750" | 1.75" | 1-1/2-11-1/2" | 1.50" | 2.115" | 2.125 | 0.531 | 1/2-13 |
| 1928-61-32-32 | Steel | 2" | 2" | 3.81" | 4.13" | 1.688" | 3.062" | 1.75" | 2-11-1/2" | 2.00" | 2.490" | 2.500 | 0.531 | 1/2-13 |
| 1928-61-40-40 | Steel | 2-1/2" | 2-1/2" | 4.28" | 4.63" | 2.000" | 3.500" | 2.00" | 2-1/2-8" | 2.50" | 2.995" | 3.005 | 0.531 | 1/2-13 |
| 1928-61-48-48 | Steel | 3" | 3" | 5.16" | 5.44" | 2.438" | 4.188" | 2.25" | 3-8" | 3.00" | 3.615" | 3.625 | 0.656 | 5/8-11 |
