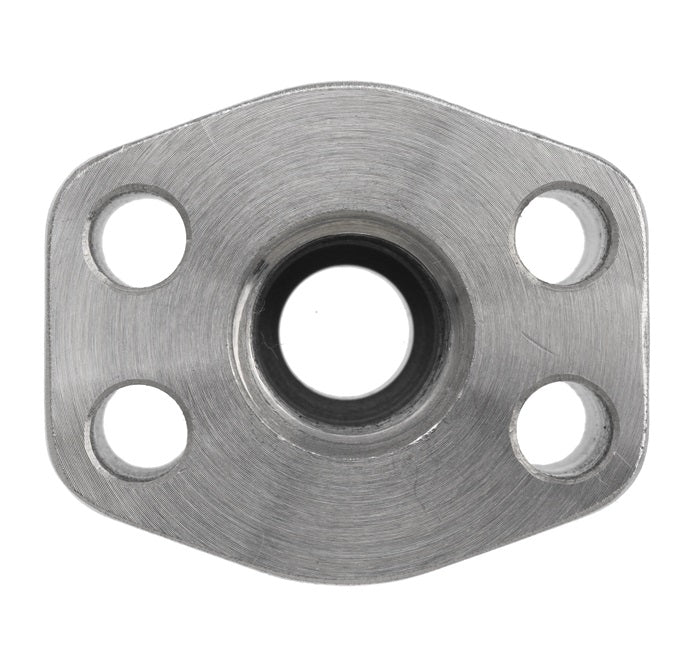

1927-61-24-24-K by Brennan Inc. | -24 Female Pipe x -24 Code 61 O-Ring Face Flange | with Bolt Kit | Steel
Brennan Inc.
Flange Fittings: 1927-61-K - Female Pipe x O-Ring Face Flange (Code 61) with Bolt Kit
Product Data:
Ends Configuration:
Material(s):
 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Pipe Size | Flange Size | A | B | C | D | E | G NPTF | H | J Min. | J Max. | K1 Drill | K2 Thread |
| 1927-61-08-08-K | Steel | 1/2" | 1/2" | 1.82" | 2.17" | 0.688" | 1.500" | 1.25" | 1/2-14" | 0.50" | 1.000" | 1.005 | 0.3440 | 5/16-18 |
| 1927-61-12-12-K | Steel | 3/4" | 3/4" | 2.06" | 2.69" | 0.875" | 1.875" | 1.25" | 3/4-14" | 0.75" | 1.250" | 1.255 | 0.406 | 3/8-16 |
| 1927-61-16-16-K | Steel | 1" | 1" | 2.31" | 2.88" | 1.031" | 2.062" | 1.50" | 1-11-1/2" | 1.00" | 1.560" | 1.565 | 0.406 | 3/8-16 |
| 1927-61-20-20-K | Steel | 1-1/4" | 1-1/4" | 2.88" | 3.25" | 1.188" | 2.312" | 1.50" | 1-1/4-11-1/2" | 1.25" | 1.750" | 1.755 | 0.469 | 7/16-14 |
| 1927-61-24-24-K | Steel | 1-1/2" | 1-1/2" | 3.25" | 3.81" | 1.406" | 2.750" | 1.75" | 1-1/2-11-1/2" | 1.50" | 2.115" | 2.125 | 0.531 | 1/2-13 |
| 1927-61-32-48-K | Steel | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 1927-61-40-40-K | 2-1/2" | 2-1/2" | 4.28" | 4.63" | 2.000" | 3.500" | 2.00" | 2-1/2-8" | 2.50" | 2.995" | 3.005 | 0.531 | 1/2-13 | Steel |
| 1927-61-48-48-K | Steel | 3" | 3" | 5.16" | 5.44" | 2.438" | 4.188" | 2.25" | 3-8" | 3.00" | 3.615" | 3.625 | 0.656 | 5/8-11 |
