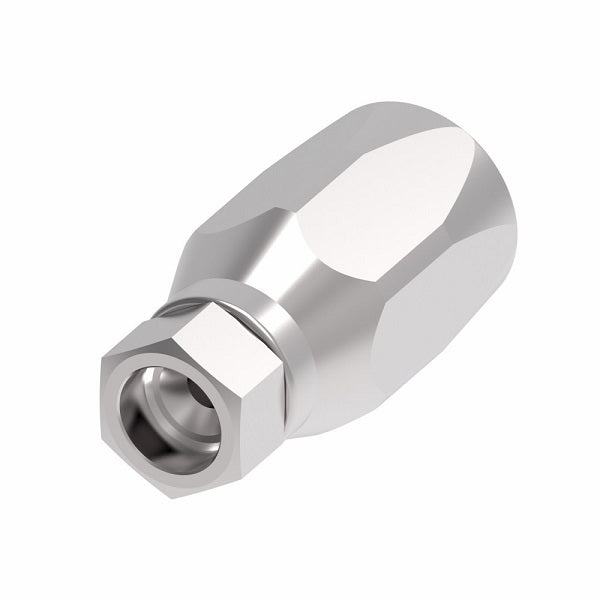

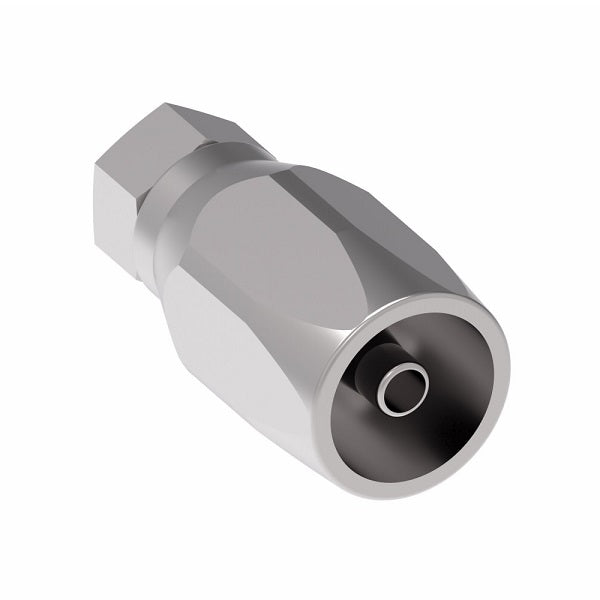

191000-10S Aeroquip by Danfoss | Lifesaver 100R2 Skive Style Reusable Hose Fitting | -10 Braze x -10 Reusable Hose End | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Tube | A | D | EØ | H |
| 191000-4S | -04 | 1/4" | 2.03" | 0.25" | 0.80" | 0.17" |
| 191000-6S | -06 | 3/8" | 2.22" | 0.38" | 0.75" | 0.31" |
| 191000-8S | -08 | 1/2" | 2.40" | 0.50" | 0.89" | 0.39" |
| 191000-10S | -10 | 5/8" | 2.50" | 0.62" | 0.94" | 0.50" |
| 191000-12S | -12 | 3/4" | 2.86" | 0.75" | 0.99" | 0.61" |
| 191000-16S | -16 | 1" | 3.34" | 1.00" | 1.29" | 0.82" |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
