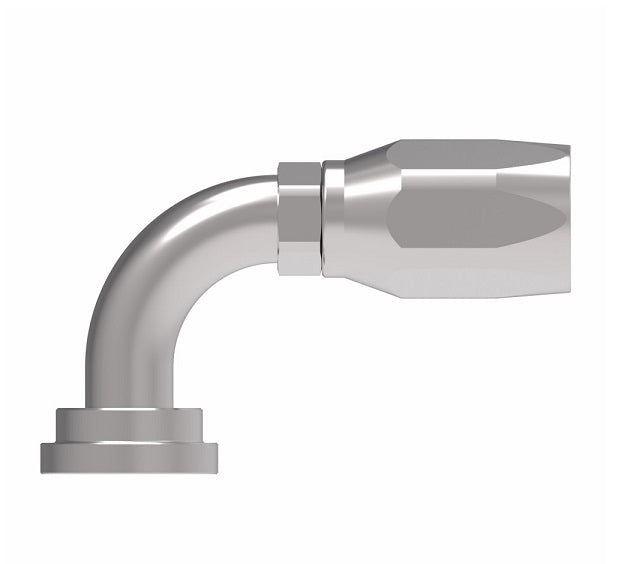

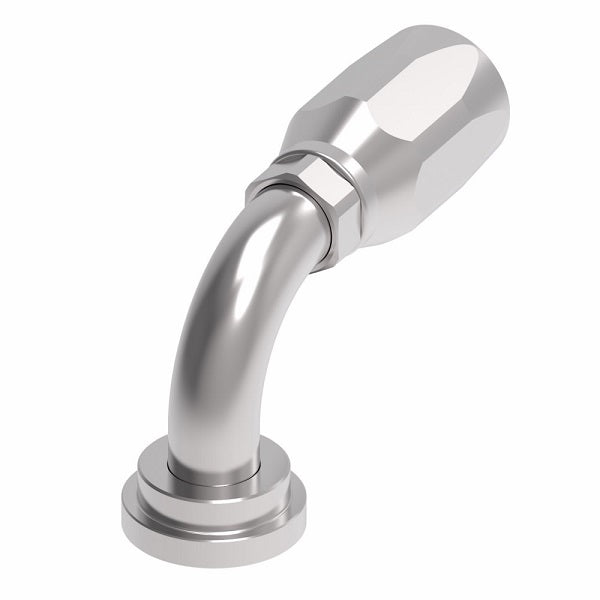

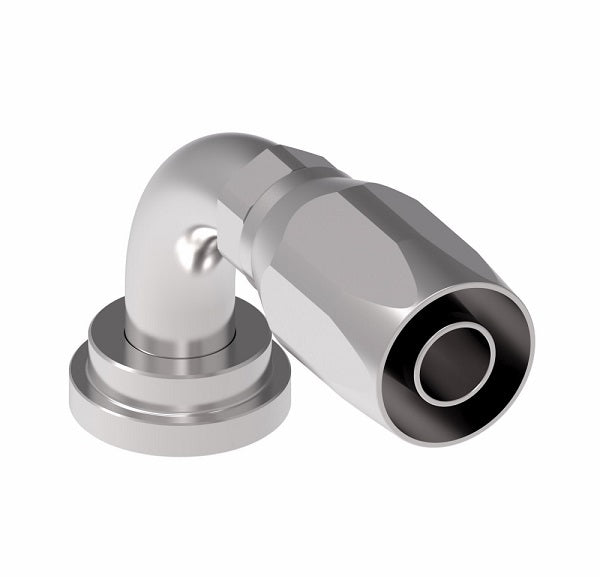

190937-16S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow Skive Style Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel
190937-16S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow Skive Style Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel
190937-16S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow Skive Style Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel

190937-16S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow Skive Style Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel

Sale price$217.76
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ H
190936-16S -16 1.75" 5.34" 3.28" 0.82" 2.38"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1in Code 61 Flange
  • 1in Reusable Hose End
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
