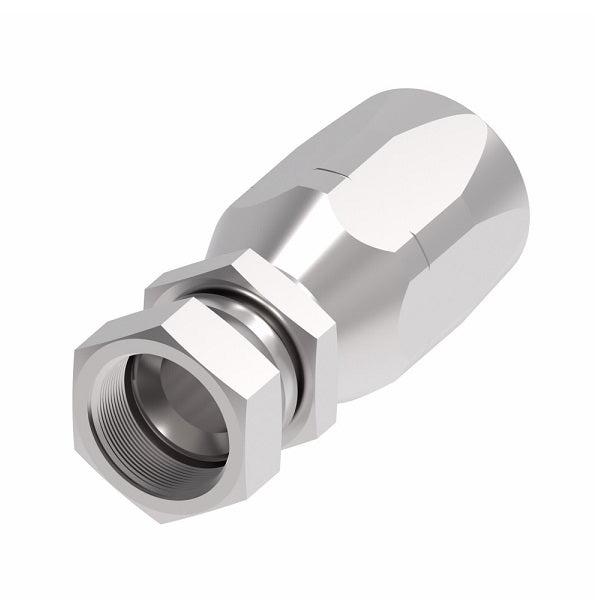

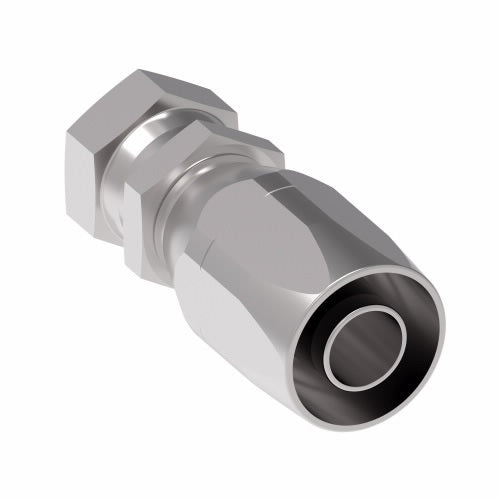

190933-16S Aeroquip by Danfoss | Female 37° JIC Swivel Spiral Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
190933-16S Aeroquip by Danfoss | Female 37° JIC Swivel Spiral Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

190933-16S Aeroquip by Danfoss | Female 37° JIC Swivel Spiral Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

Sale price$93.52

Aeroquip® by Danfoss
Spiral Skive Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $87.91
20–59 $79.49
60+ $70.14
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Female JIC
  • 1in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ
190933-6-6S -06 9/16-18 3.30" 1.68" 0.30"
190933-8-8S -08 3/4-16 3.20" 1.68" 0.39"
190933-10-8S -08 7/8-14 3.31" 1.80" 0.39"
190933-12S -12 1-1/16-12 3.86" 1.99" 0.61"
190933-16S -16 1-5/16-12 4.48" 2.43" 0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
