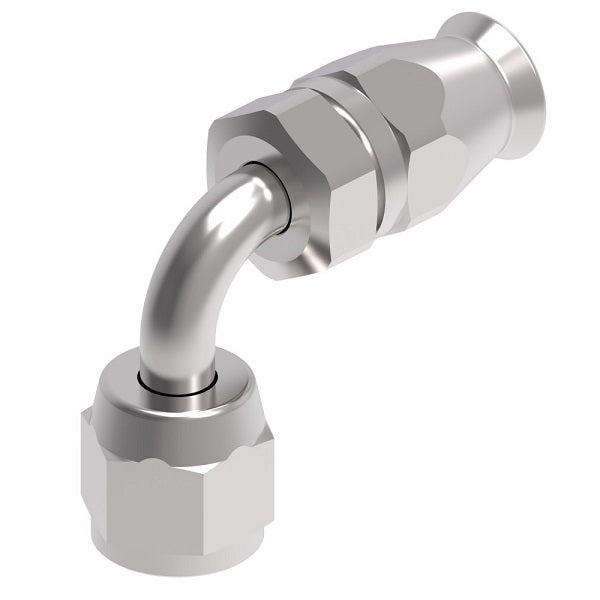

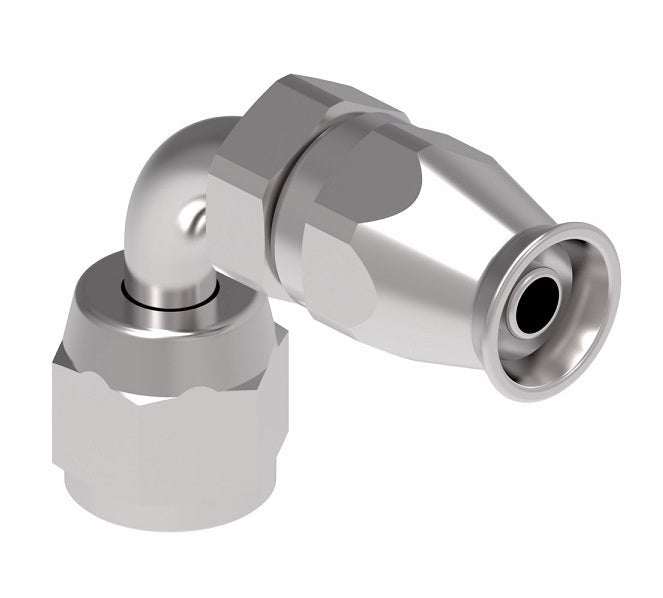

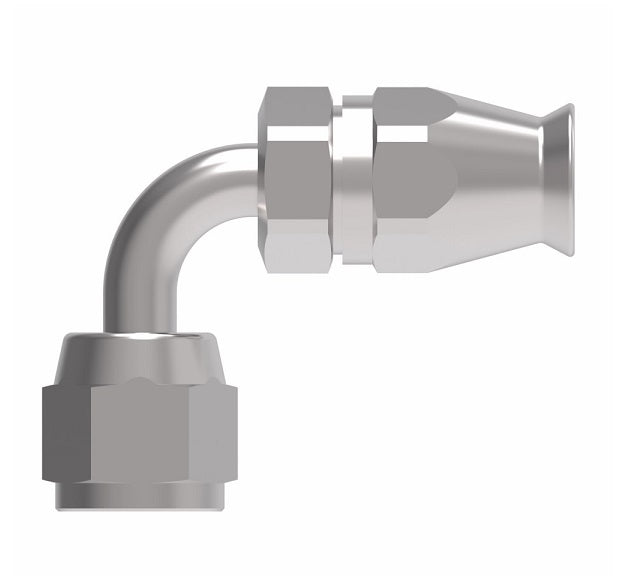

190772-12S Aeroquip by Danfoss | Female Universal 90° Elbow Super Gem PTFE Reusable Hose Fitting | -12 Female JIC (Also Couples w/ SAE 45° Flare) -12 Reusable Hose End | Steel
Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female Universal - 90° Elbow
Female JIC also Couples with SAE 45° Flare.
Universal type identification for both SAE 45° and 37° connections.
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $64.01 |
| 40–79 | $57.89 |
| 80+ | $51.08 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ | H | Sleeve Brass Part Number |
Sleeve Stainless Steel Part Number |
| 190772-3S | -03 | 3/8-24 | 1.27" | 0.93" | 0.09" | 0.87" | 900568-3B | - |
| 190772-4S | -04 | 7/16-20 | 1.41" | 0.95" | 0.16" | 0.68" | 900568-4B | 900568-4C |
| 190772-5S | -05 | 1/2-20 | 1.52" | 1.00" | 0.23" | 0.77" | 900568-5B | 900568-5C |
| 190772-6S | -06 | 9/16-18 | 1.62" | 1.10" | 0.28" | 0.85" | 900568-6B | 900568-6C |
| 190772-8S | -08 | 3/4-16 | 2.03" | 1.41" | 0.38" | 1.09" | 900568-8B | 900568-8C |
| 190772-10S | -10 | 7/8-14 | 2.16" | 1.49" | 0.47" | 1.23" | 900568-10B | 900568-10C |
| 190772-12S | -12 | 1-1/16-12 | 2.82" | 2.17" | 0.59" | 1.82" | 900568-12B | 900568-12C |
| 190772-16S | -16 | 1-5/16-12 | 3.10" | 2.49" | 0.82" | 2.39" | 900568-16B | 900568-16C |
| 190772-20S | -20 | 1-5/16-12 | - | 2.95" | 1.06" | 2.75" | 900568-20B | - |
