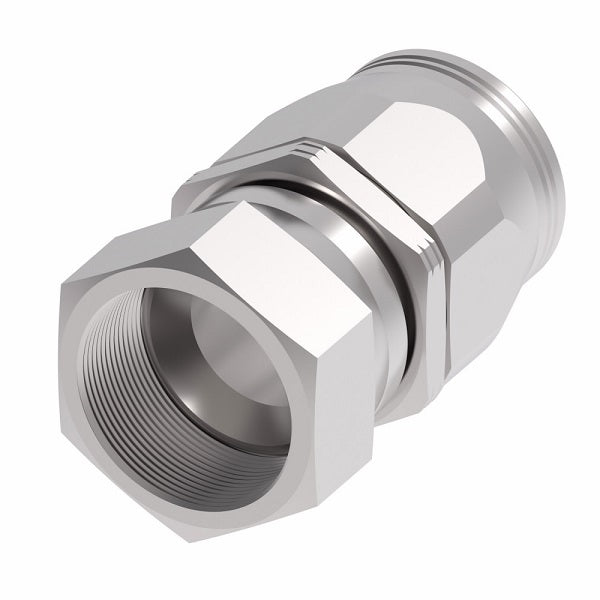

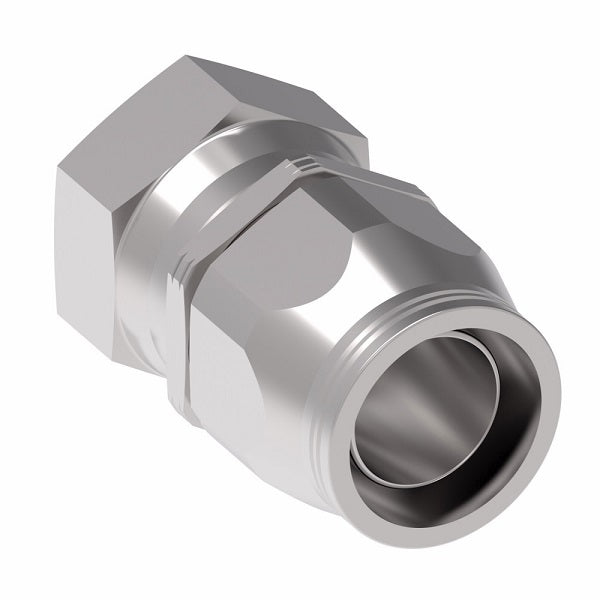

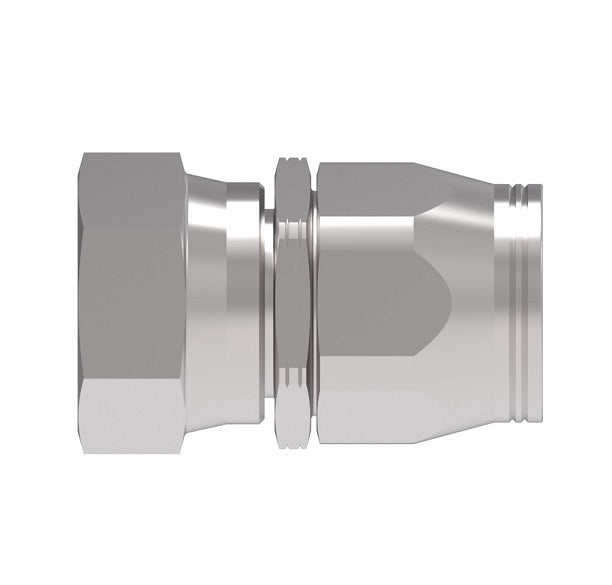

190535-24C Aeroquip by Danfoss | Female 37° JIC Swivel Super Gem PTFE Reusable Hose Fitting | -24 Female 37° JIC Swivel x -24 Reusable Hose End | Stainless Steel
Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female 37° JIC Swivel - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $372.24 |
| 15–29 | $336.60 |
| 30+ | $297.00 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel & Brass Part Number |
Stainless Steel Part Number |
Hose Size | Thread | A | D | EØ | Sleeve Brass Part Number |
Sleeve Stainless Steel Part Number |
| - | 190535-8C | -08 | 3/4-16 | 2.07" | 1.48" | 0.35" | 900568-8B | 900568-8C |
| 63-190535-12 | 190535-12C | -12 | 1-1/16-12 | 2.46" | 1.70" | 0.56" | 900568-12B | 900568-12C |
| 63-190535-16 | 190535-16C | -16 | 1-5/16-12 | 2.66" | 1.90" | 0.83" | 900568-16B | 900568-16C |
| 63-190535-20 | 190535-20C | -20 | 1-5/8-12 | 3.14" | 2.19" | 1.06" | 900568-20B | - |
| 63-190535-24 | 190535-24C | -24 | 1-7/8-12 | 3.38" | 2.42" | 1.28" | - | - |
