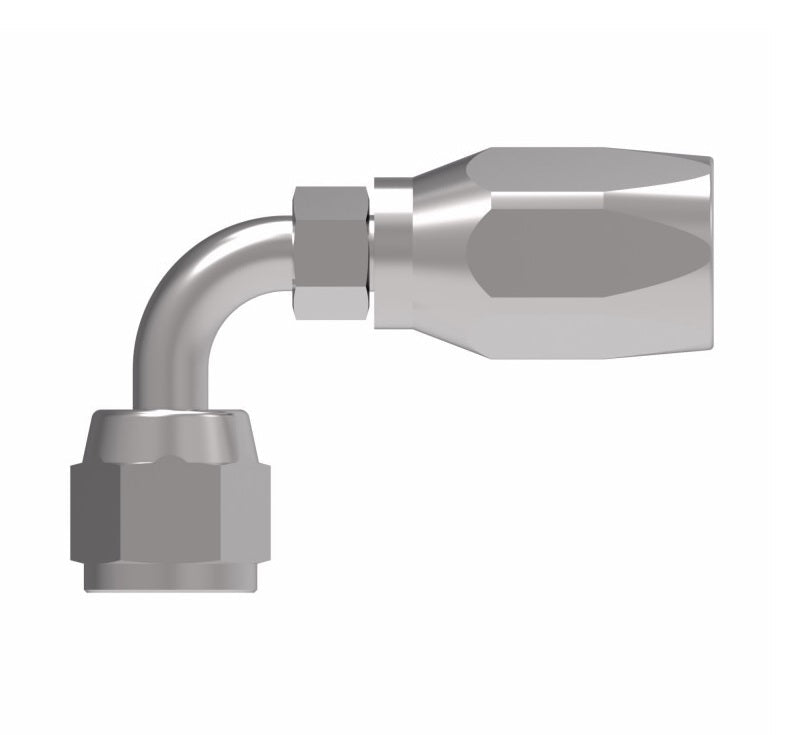

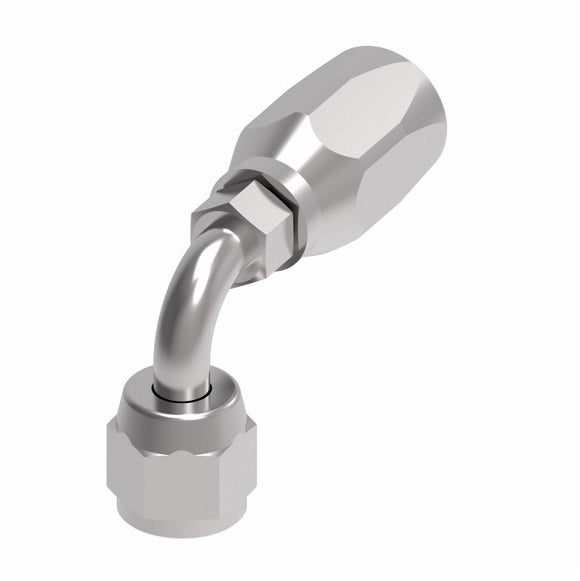

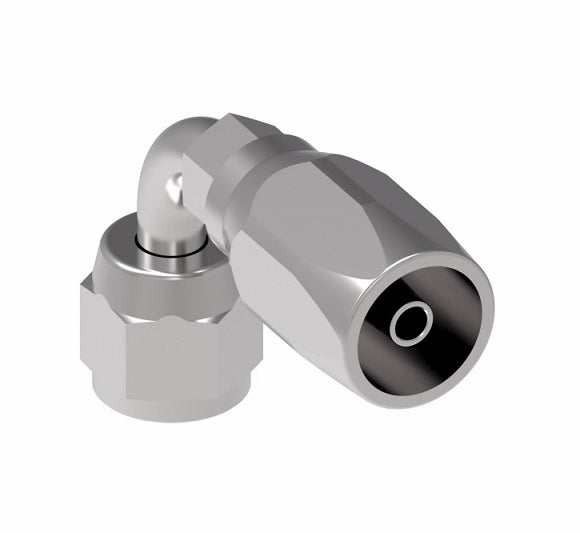

190296-4S Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Reusable Hose End | Steel
190296-4S Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Reusable Hose End | Steel
190296-4S Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Reusable Hose End | Steel

190296-4S Aeroquip by Danfoss | Female Universal Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Reusable Hose End | Steel

Sale price$26.80

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female Universal Swivel Short Drop - 90° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)

In stock
Buy More, Save More!
Quantity Price Each
10–39 $25.19
40–79 $22.78
80+ $20.10
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Female JIC
  • 1/4in Reusable Hose End
  • 1/4in Female SAE 45 Flare
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190296-4S -04 7/16-20 1.74" 0.99" 0.13" 0.68"
190296-5S -05 1/2-20 1.96" 1.18" 0.17" 0.77"
190296-8S -08 3/4-16 2.76" 1.61" 0.36" 1.09"
190296-8-10S -10 3/4-16 2.91" 1.62" 0.39" 1.09"
190296-10S -10 7/8-14 2.94" 1.65" 0.46" 1.23"
190296-10-12S -12 7/8-14 3.24" 1.67" 0.48" 1.23"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
