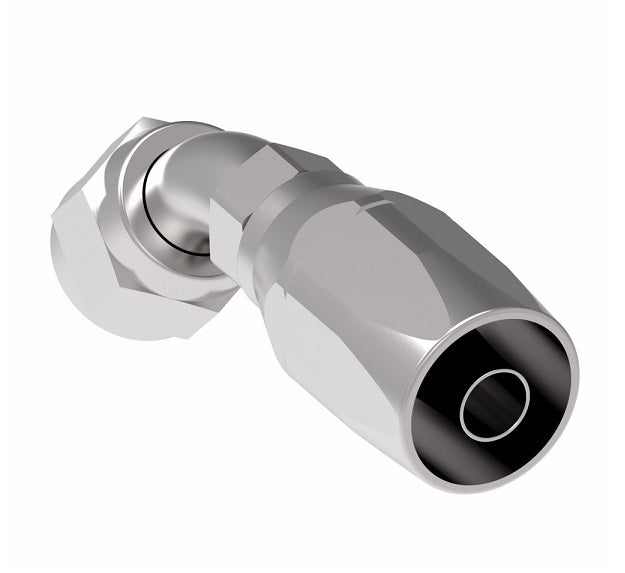

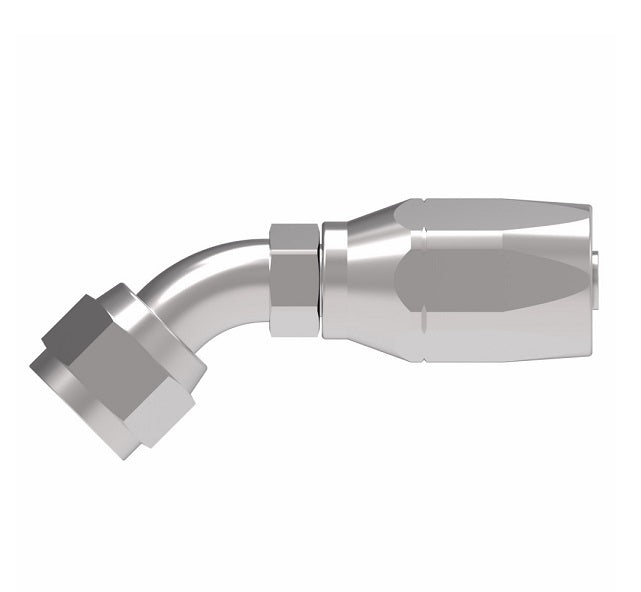

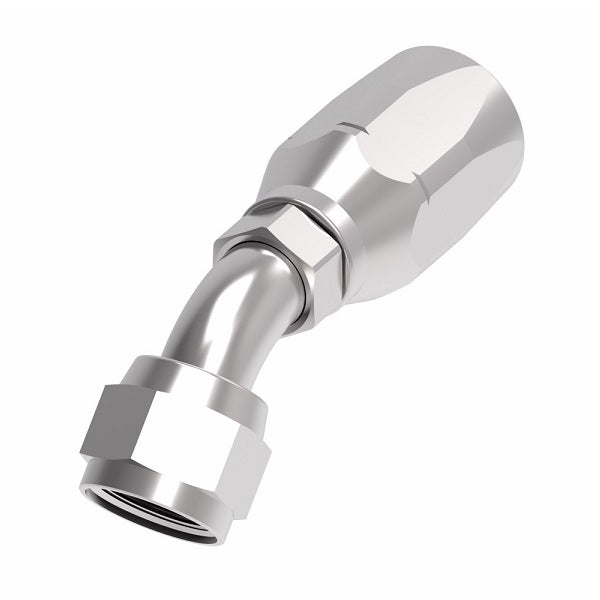

190287-10S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ | H |
| 190287-4S | -04 | 7/16-20 | 2.51" | 1.28" | 0.17" | 0.33" |
| 190287-6S | -06 | 9/16-18 | 2.82" | 1.35" | 0.31" | 0.39" |
| 190287-8S | -08 | 3/4-16 | 3.26" | 1.75" | 0.39" | 0.55" |
| 190287-10S | -10 | 7/8-14 | 3.54" | 1.99" | 0.50" | 0.64" |
| 190287-12S | -12 | 1-1/16-12 | 4.15" | 2.28" | 0.61" | 0.78" |
| 190287-16S | -16 | 1-5/16-12 | 5.03" | 2.97" | 0.82" | 1.07" |
Additional Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
