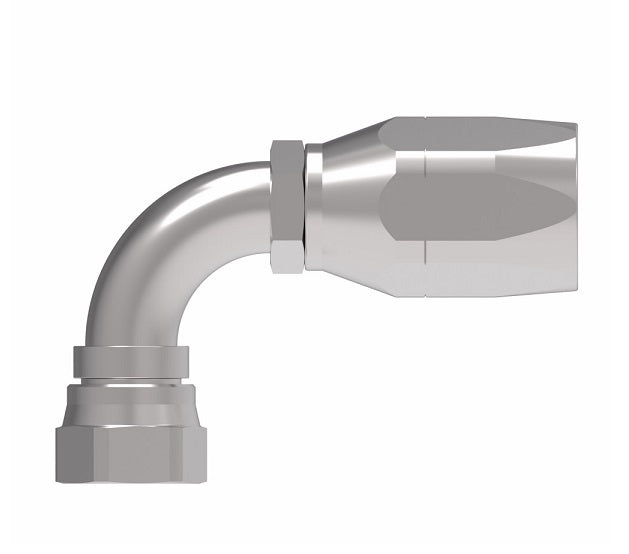

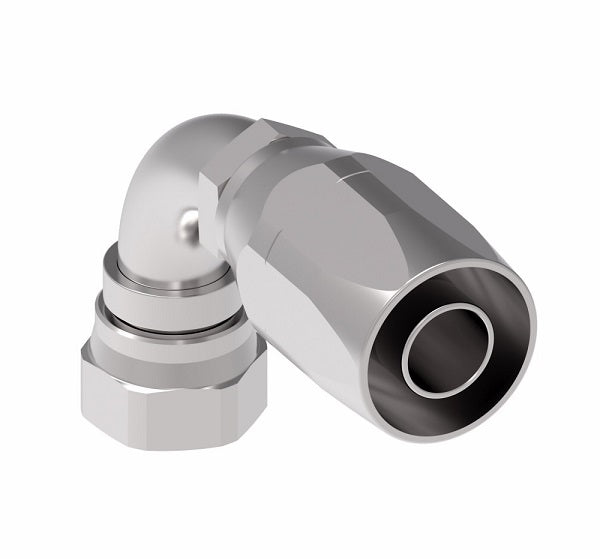

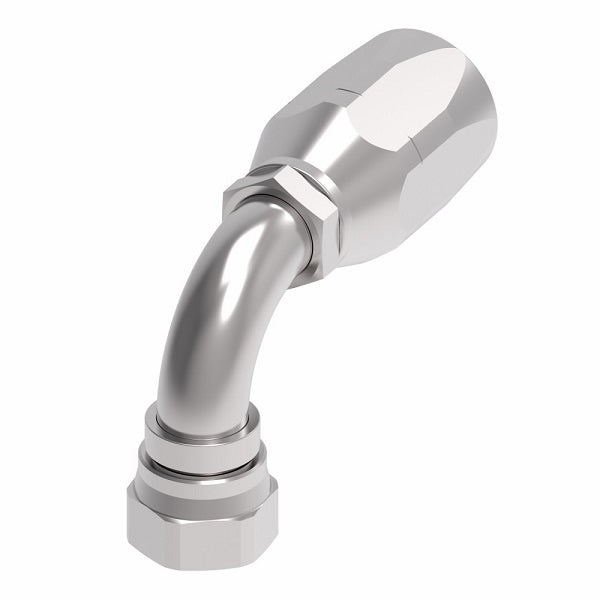

190264-16S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel | Pack of 10
190264-16S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel | Pack of 10
190264-16S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel | Pack of 10

190264-16S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel | Pack of 10

Sale price$1,348.20

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ H
190264-4S -04 7/16-20 2.40" 1.17" 0.17" 0.68"
190264-6S -06 9/16-18 2.72" 1.25" 0.31" 0.85"
190264-8S -08 3/4-16 3.02" 1.52" 0.39" 1.09"
190264-10-8S -08 7/8-14 3.15" 1.64" 0.39" 1.23"
190264-10S -10 7/8-14 3.24" 1.69" 0.50" 1.23"
190264-12S -12 1-1/16-12 4.11" 2.24" 0.61" 1.82"
190264-16S -16 1-5/16-12 4.84" 2.79" 0.82" 2.39"
190264-20S -20 1-5/8-12 5.68" 3.36" 1.05" 2.75"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1in Female JIC
  • 1in Reusable Hose End
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
