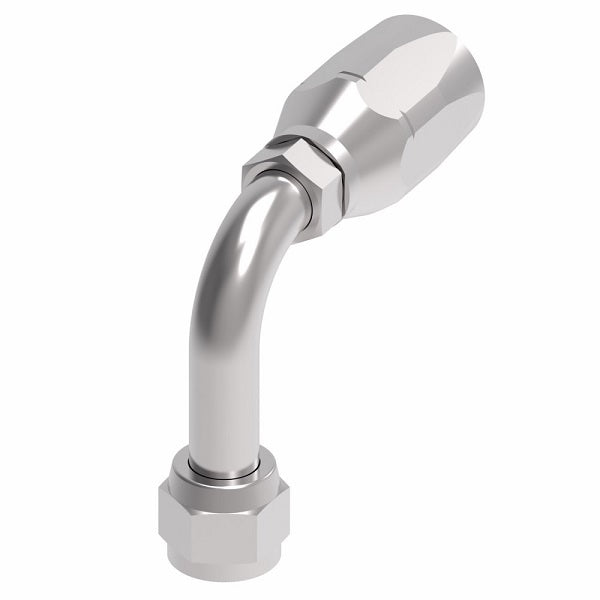

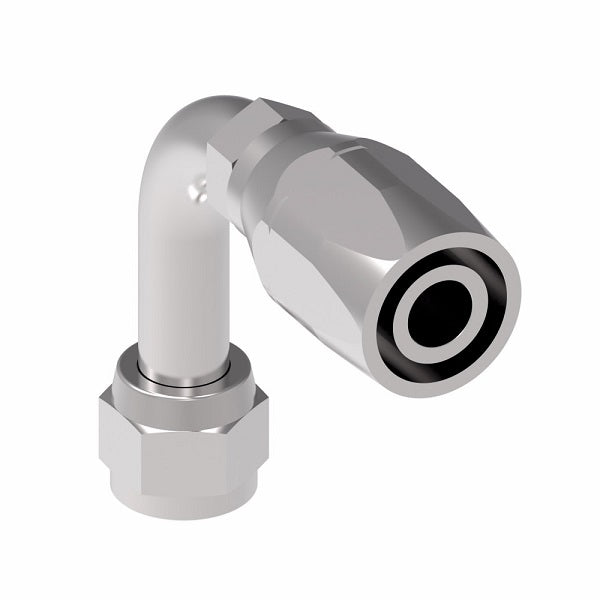

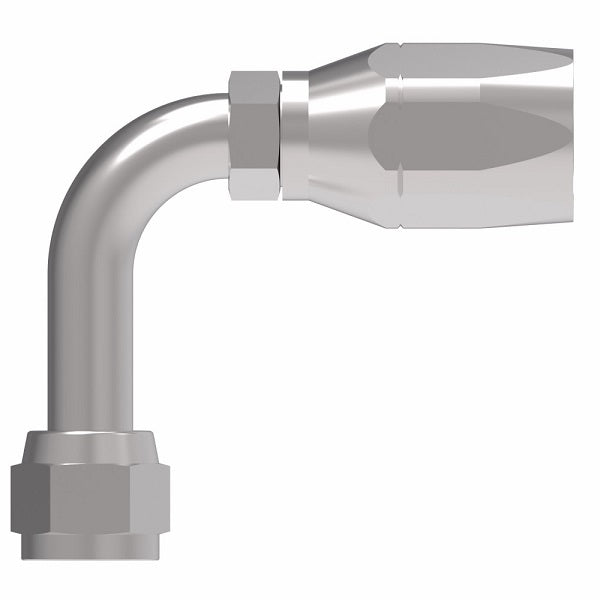

190263-8S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel Long Drop - 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $65.50 |
| 40–79 | $59.23 |
| 80+ | $52.26 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ | H |
| 190263-4S | -04 | 7/16-20 | 2.40" | 1.17" | 0.17" | 1.80" |
| 190263-6S | -06 | 9/16-18 | 2.72" | 1.25" | 0.31" | 2.18" |
| 190263-8S | -08 | 3/4-16 | 3.15" | 1.64" | 0.39" | 2.43" |
| 190263-10-8S | -08 | 7/8-14 | 3.40" | 1.89" | 0.39" | 2.57" |
| 190263-10S | -10 | 7/8-14 | 3.50" | 1.94" | 0.50" | 2.57" |
| 190263-12S | -12 | 1-1/16-12 | 4.11" | 2.24" | 0.61" | 3.73" |
| 190263-16S | -16 | 1-5/16-12 | 4.84" | 2.78" | 0.82" | 4.58" |
