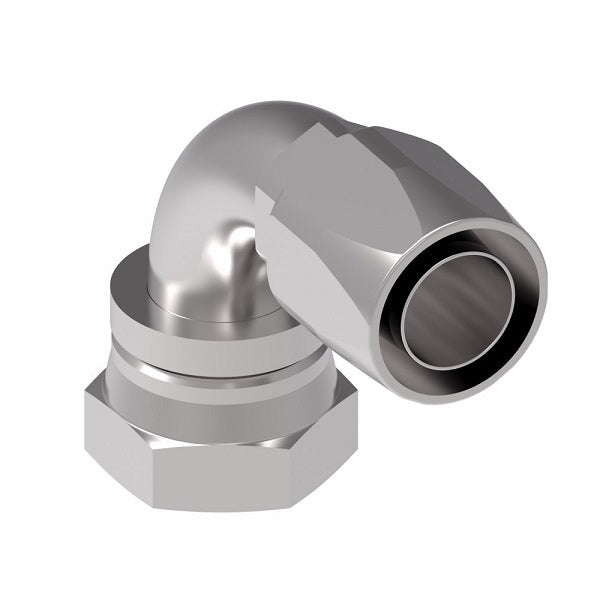

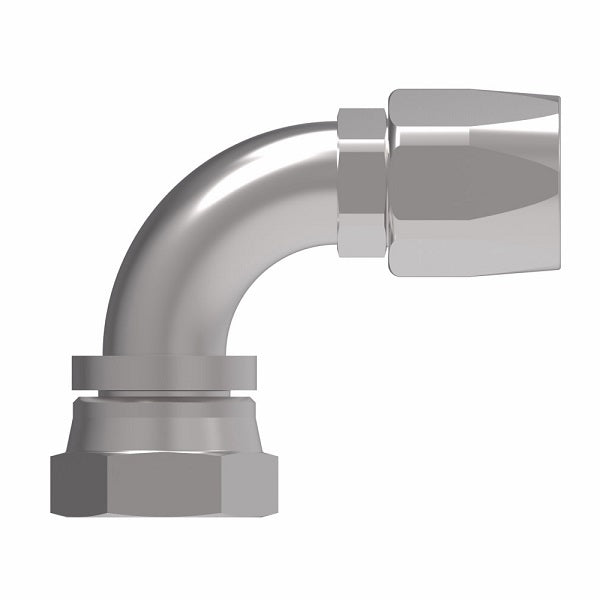

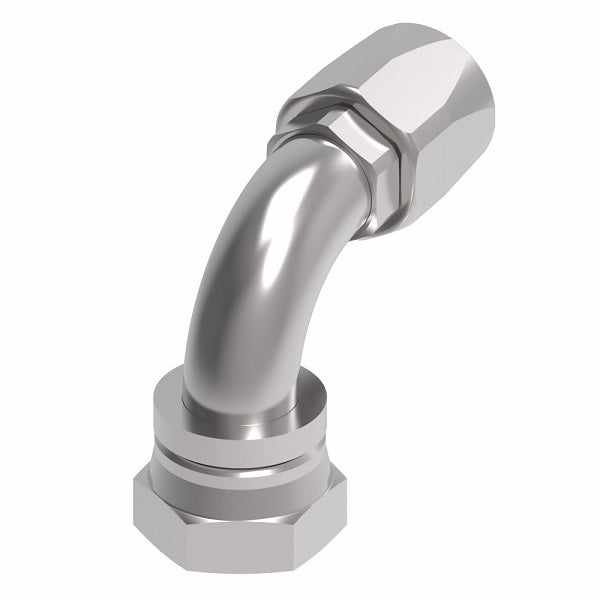

190261-20-24S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -20 Female 37° JIC Swivel x -24 Reusable Hose End | Steel
190261-20-24S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -20 Female 37° JIC Swivel x -24 Reusable Hose End | Steel
190261-20-24S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -20 Female 37° JIC Swivel x -24 Reusable Hose End | Steel

190261-20-24S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -20 Female 37° JIC Swivel x -24 Reusable Hose End | Steel

Sale price$131.30

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $123.42
20–59 $111.61
60+ $98.48
Discounts applied in cart/checkout.
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190261-6S -06 9/16-18 2.13" 1.23" 0.24" 0.85"
190261-12S -12 1-1/16-12 3.74" 2.17" 0.55" 1.82"
190261-16S -16 1-5/16-12 3.55" 2.28" 0.82" 2.30"
190261-20S -20 1-5/8-12 4.02" 2.65" 1.05" 2.75"
190261-20-24S -20 1-5/8-12 4.11" 2.66" 1.05" 2.75"

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/4in Female JIC
  • 1-1/2in Reusable Hose End
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
