190260-16S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
190260-16S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
190260-16S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

190260-16S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

Sale price$119.88

Aeroquip® by Danfoss

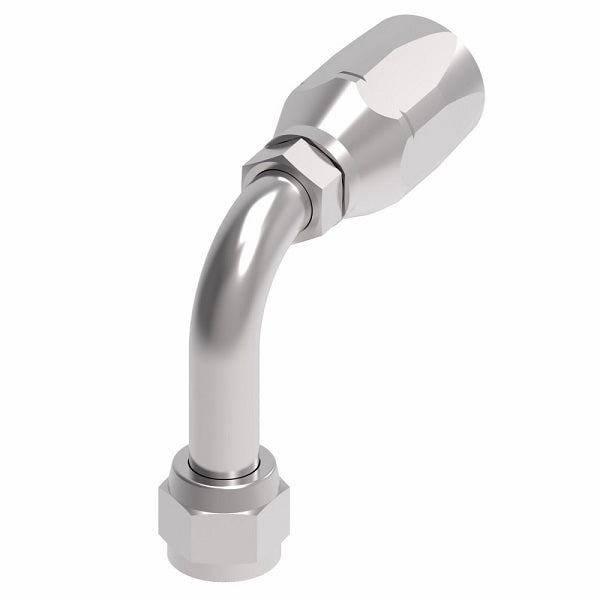

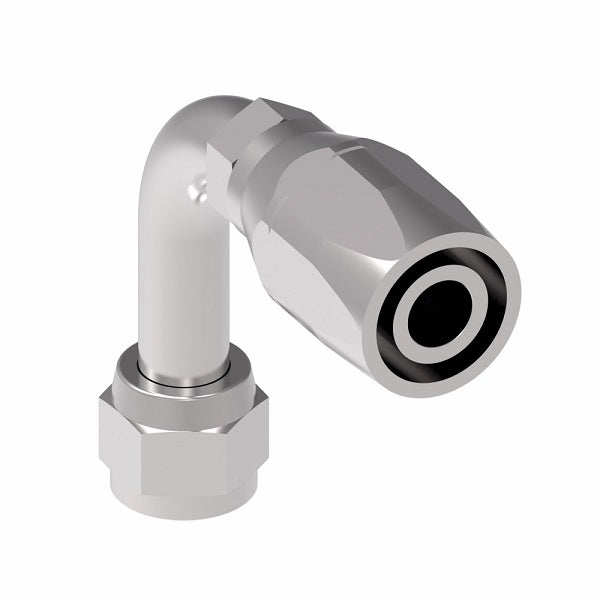

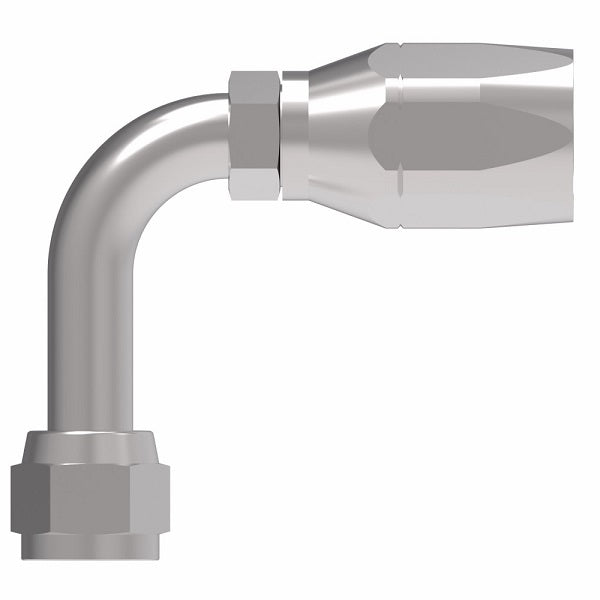

SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $112.69
20–59 $101.90
60+ $89.91
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1in Female JIC
  • 1in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190260-6S -06 9/16-18 2.13" 1.23" 0.24" 2.18"
190260-12S -12 1-1/16-12 3.74" 2.17" 0.55" 3.73"
190260-16S -16 1-5/16-12 3.55" 2.28" 0.82" 4.58"
190260-20S -20 1-5/8-12 4.02" 2.65" 1.05" 5.53"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
