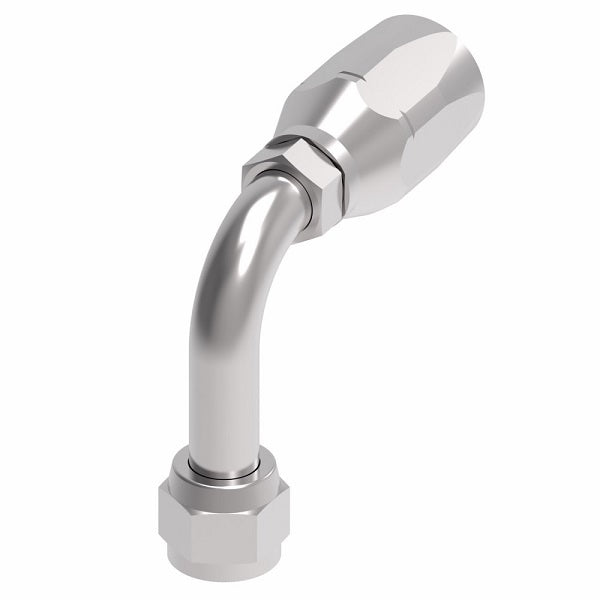

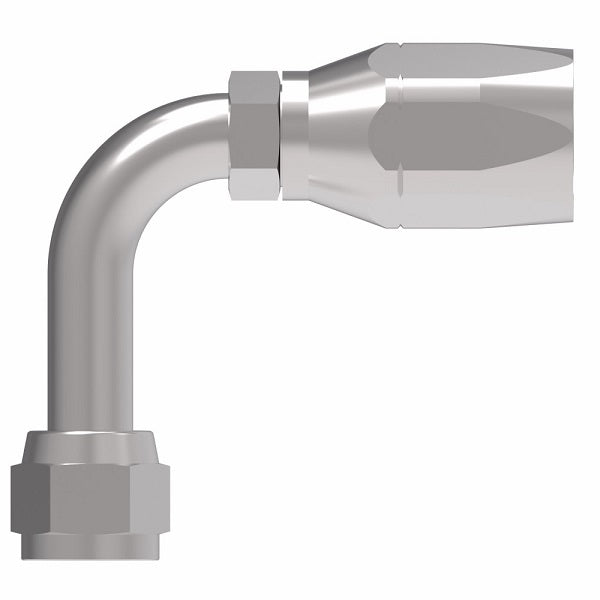

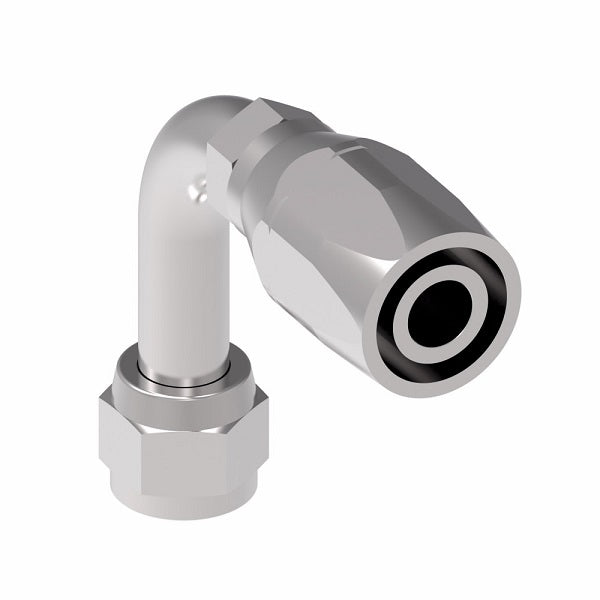

190260-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
190260-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
190260-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

190260-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

Sale price$77.72

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)

In stock
Buy More, Save More!
Quantity Price Each
10–39 $73.06
40–79 $66.06
80+ $58.29
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/4in Female JIC
  • 3/4in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190260-6S -06 9/16-18 2.13" 1.23" 0.24" 2.18"
190260-12S -12 1-1/16-12 3.74" 2.17" 0.55" 3.73"
190260-16S -16 1-5/16-12 3.55" 2.28" 0.82" 4.58"
190260-20S -20 1-5/8-12 4.02" 2.65" 1.05" 5.53"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
