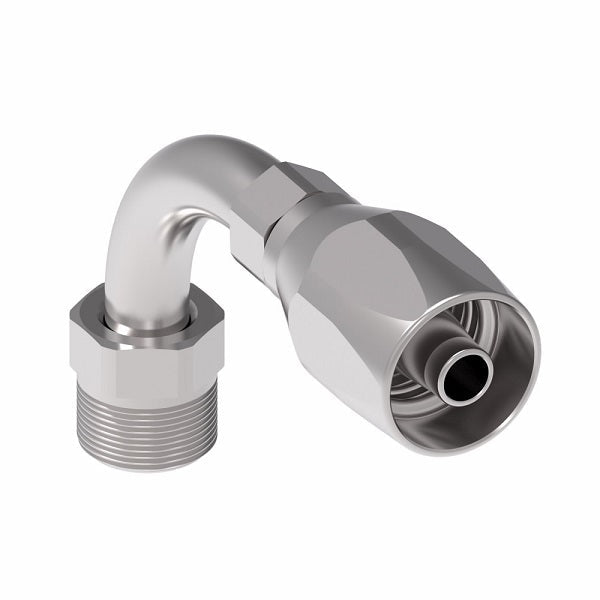

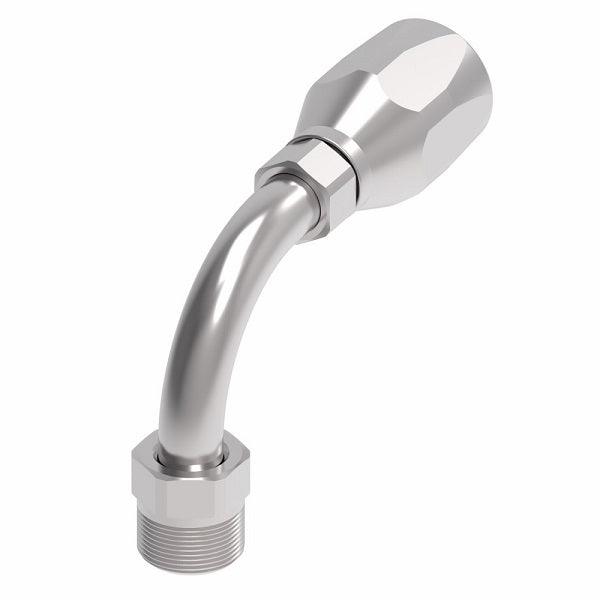

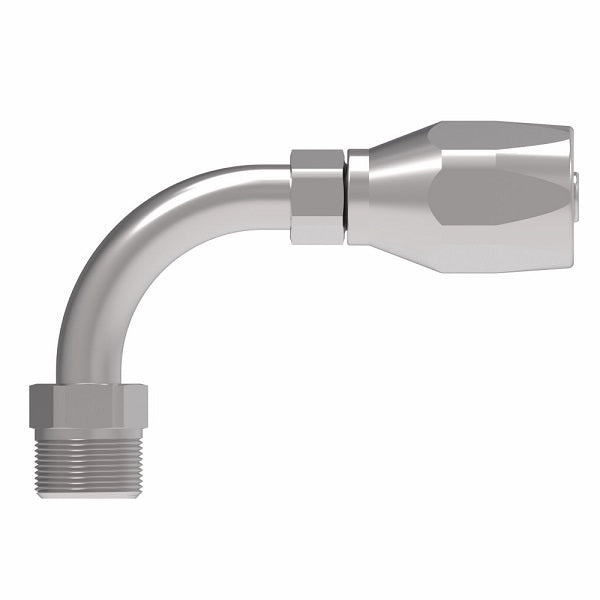

190235-6-8S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -06 Male Inverted Flare x -08 Reusable Hose End | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ | H |
| 190235-4S | -04 | 7/16-24 | 2.36" | 1.62" | 0.13" | 1.69" |
| 190235-5S | -05 | 1/2-20 | 2.53" | 1.75" | 0.18" | 1.69" |
| 190235-5-6S | -06 | 1/2-20 | 2.63" | 1.73" | 0.24" | 1.73" |
| 190235-6S | -06 | 5/8-18 | 2.63" | 1.73" | 0.24" | 1.73" |
| 190235-7-6S | -06 | 11/16-18 | 2.63" | 1.73" | 0.24" | 1.73" |
| 190235-6-8S | -08 | 5/8-18 | 3.04" | 1.89" | 0.28" | 1.73" |
| 190235-7-8S | -08 | 11/16-18 | 3.04" | 1.89" | 0.28" | 1.73" |
| 190235-8S | -08 | 3/4-18 | 3.04" | 1.89" | 0.36" | 1.75" |
| 190235-10S | -10 | 7/8-18 | 3.44" | 2.15" | 0.46" | 2.22" |
Additional Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
