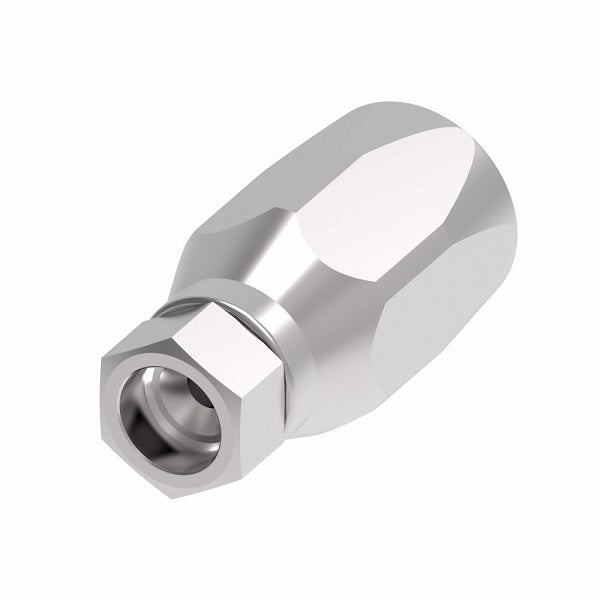

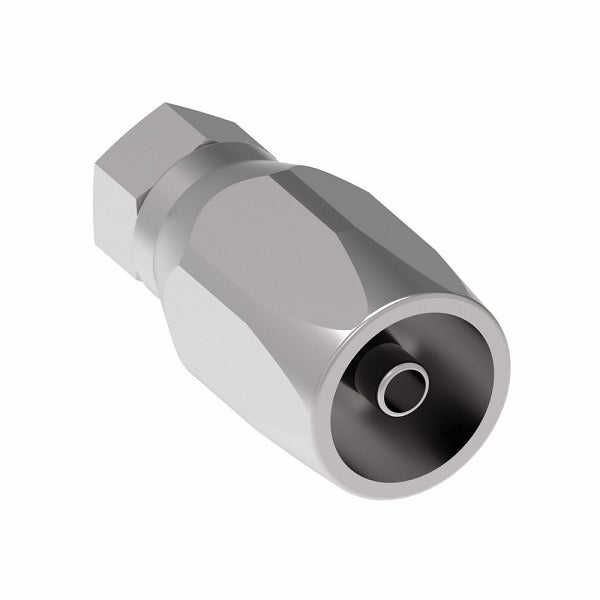

190000-5S Aeroquip by Danfoss | Lifesaver 100R5 Reusable Hose Fitting | -05 Lifesaver x -05 Reusable Hose End | Steel
Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Lifesaver - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.01 |
| 40–79 | $13.57 |
| 80+ | $11.98 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Tube | A | B** | D | EØ |
| 190000-4S | -04 | 1/4" | 1.36" | 0.25" | 0.62" | 0.13" |
| 190000-5S | -05 | 5/16" | 1.53" | 0.31" | 0.75" | 0.18" |
| 190000-5-6S | -06 | 5/16" | 1.63" | 0.31" | 0.73" | 0.24" |
| 190000-6S | -06 | 3/8" | 1.63" | 0.38" | 0.73" | 0.24" |
| 190000-6-8S | -08 | 3/8" | 2.04" | 0.38" | 0.89" | 0.28" |
| 190000-8S | -08 | 1/2" | 2.04" | 0.50" | 0.89" | 0.36" |
| 190000-10S | -10 | 5/8" | 2.19" | 0.62" | 0.90" | 0.46" |
| 190000-12S | -12 | 3/4" | 2.49" | 0.75" | 0.92" | 0.55" |
| 190000-16S | -16 | 1" | 2.05" | 1.00" | 0.78" | 0.82" |
| 190000-20S | -20 | 1-1/4" | 2.26" | 1.25" | 0.90" | 1.05" |
| 190000-24S | -24 | 1/2" | 2.42" | 1.50" | 0.97" | 1.28" |
| 190000-32S | -32 | 2" | 2.89" | 2.00" | 1.05" | 1.75" |
| 190000-40S | -40 | 2-1/2" | 3.26" | 2.50" | 1.36" | 2.21" |
** "B" dimension is counterbore diameter for mating tubing
