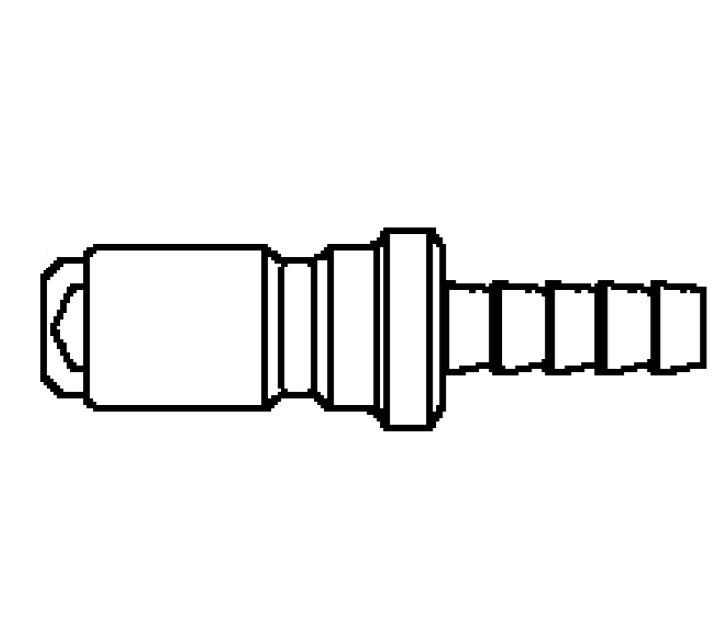

189 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | Hose Barb End | 3/16" Hose ID x 1/8" Body Size | Plug | Brass

189 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | Hose Barb End | 3/16" Hose ID x 1/8" Body Size | Plug | Brass

Sale price$12.37

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 180/280 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 180/280 series miniature ball lock quick disconnect couplings are designed for use with compressed air, gases and liquids.

Series 180 an 280 sockets/females mate with all Series 180 plugs/males
Buy More, Save More!
Quantity Price Each
10–39 $11.63
40–79 $10.51
80+ $9.28
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 180/280 Series
Shape:

Straight
Features:
  • Series 180 sockets/females have a tire valve.
  • Series 280 sockets/females have a 1HK valve, which provides higher flow capacity.
  • Note: Interchange is proprietary to Danfoss.
Applications & Markets:
  • Recreation and Entertainment
  • Breathing Air
  • General Pneumatics
  • Pharmaceutical
  • Laboratory Uses
  • Medical
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
180 1/8" 48 bar 700 psi 192 bar 2,800 psi 71 lpm 2.5 scfm
280 1/8" 207 bar 3,000 psi 828 bar 1,200 psi 283 lpm 10 scfm
Plug/Male
(Figure 1)
Plug/Male
(Figure 2)
180/280 Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
C D
187 Plug/Male 1/8" 1/8" Hose Barb 1 1.25"
(31.8mm)		 0.38"
(9.7mm)
189 Plug/Male 1/8" 3/16" Hose Barb 2 1.50"
(38.1mm)		 0.38"
(9.7mm)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
