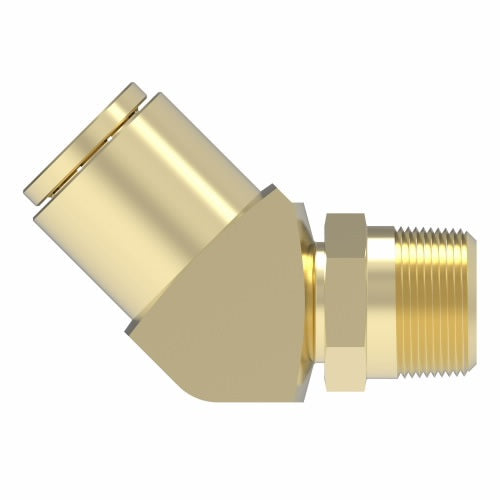

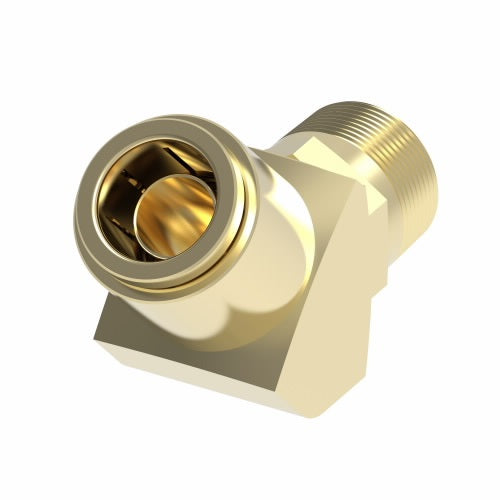

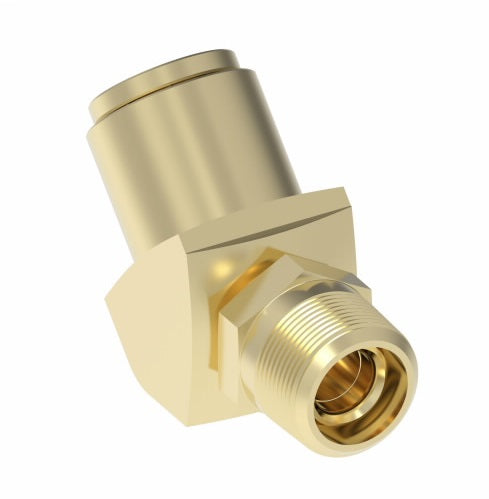

1880X4X4S by Danfoss | Quick Connect Air Brake Adapter | Male Connector 45° Elbow Swivel | 1/4" Tube OD x 1/4" Male NPTF | Brass
1880X4X4S by Danfoss | Quick Connect Air Brake Adapter | Male Connector 45° Elbow Swivel | 1/4" Tube OD x 1/4" Male NPTF | Brass
1880X4X4S by Danfoss | Quick Connect Air Brake Adapter | Male Connector 45° Elbow Swivel | 1/4" Tube OD x 1/4" Male NPTF | Brass

1880X4X4S by Danfoss | Quick Connect Air Brake Adapter | Male Connector 45° Elbow Swivel | 1/4" Tube OD x 1/4" Male NPTF | Brass

Sale price$30.12

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Male Connector Swivel

In stock
Buy More, Save More!
Quantity Price Each
10–39 $28.31
40–79 $25.60
80+ $22.59
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Material(s):
  • Brass
Compatible Series:
  • 3270 Series
  • 4247 Series
  • 4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA03DD
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Male Pipe Thread D1 M N Hex
C
1880X4S 1/4" 1/8" 0.13" 0.82" 0.60" 7/16"
1880X4X4S 1/4" 1/4" 0.22" 0.98" 0.60" 9/16"
1880X6X2S 3/8" 1/8" 0.13" 1.20" 0.68" 7/16"
1880X6S 3/8" 1/4" 0.22" 1.20" 0.89" 9/16"
1880X6X6S 3/8" 3/8" 0.30" 1.20" 0.97" 11/16"
1880X8X4S 1/2" 1/4" 0.23" 1.20" 0.97" 9/16"
1880X8S 1/2" 3/8" 0.30" 1.04" 1.07" 11/16"
1880X8X8S 1/2" 1/2" 0.42" 1.08" 1.22" 7/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
