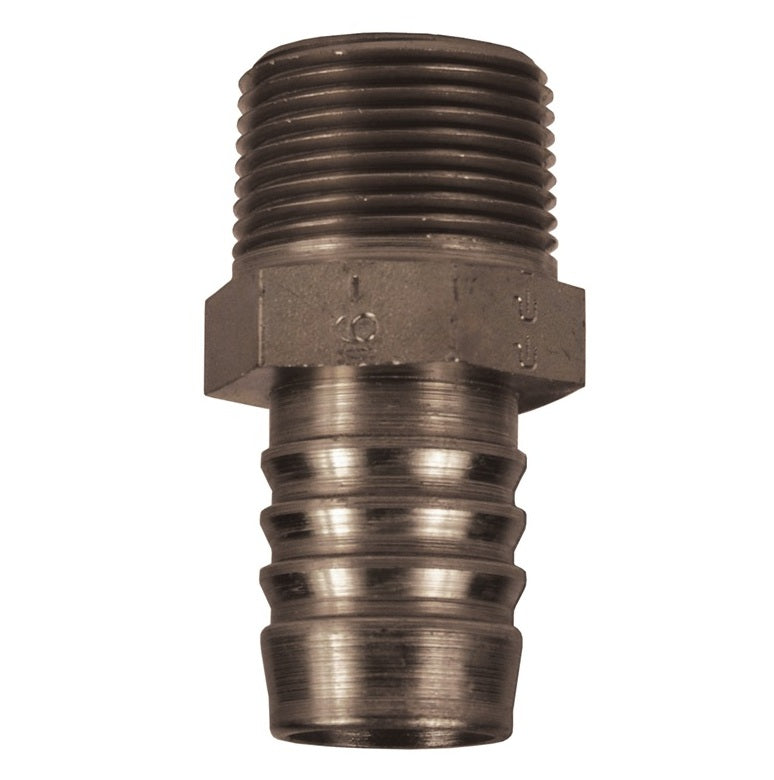

188-12 by Dixon Valve | Hydraulic Suction & Return Line Hose Stem | 3/4" Male NPTF x 3/4" Hose ID | Plated Steel

188-12 by Dixon Valve | Hydraulic Suction & Return Line Hose Stem | 3/4" Male NPTF x 3/4" Hose ID | Plated Steel

Sale price$21.07

Dixon Valve
Hydraulic Suction and Return Line Hose Coupling | Male NPTF

Designed for hydraulic suction line applications using SAE100R4 hydraulic hose.
Buy More, Save More!
Quantity Price Each
10–39 $19.81
40–79 $17.91
80+ $15.80
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Hose Barb
  • 3/4in Male NPTF
Material(s):
  • Plated Steel
Features:
  • Barbs provide easy assembly and maximum gripping action.
  • NOTE: Return line clamps must be used with these fittings.
Materials:
  • Plated Steel
Plated Steel
Part Number		 Hose I.D. Male NPTF
188-12 3/4" 3/4"-14
188-16 1" 1"-11-1/2
188-20 1-1/4" 1-1/4"-11-1/2
188-24 1-1/2" 1-1/2"-11-1/2
188-32 2" 2"-11-1/2

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Explore Dixon Valve & Coupling
