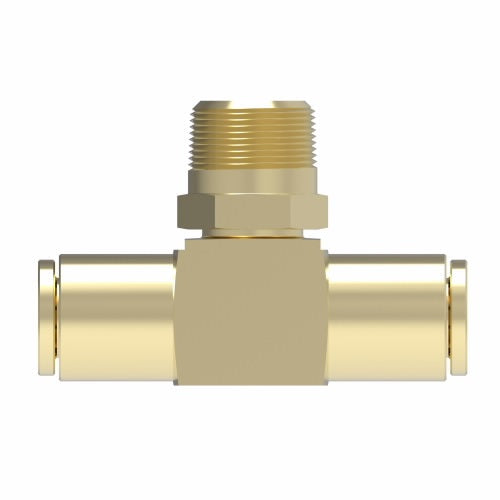

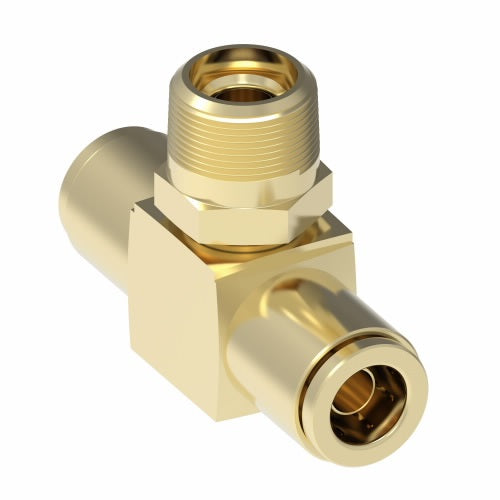

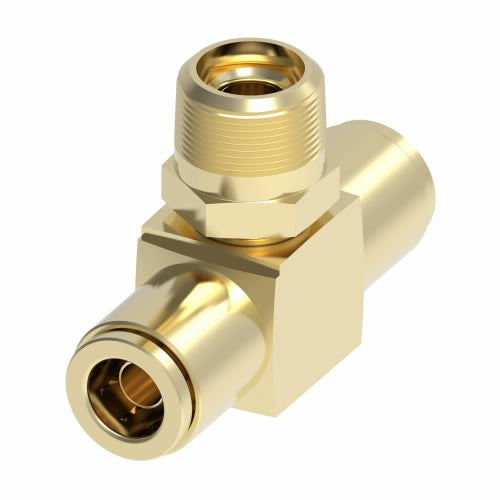

1872X4S by Danfoss | Quick Connect Air Brake Adapter | Swivel Male Branch Tee | 1/4" Tube OD x 1/4" Tube OD x 1/8" Male Pipe | Brass
1872X4S by Danfoss | Quick Connect Air Brake Adapter | Swivel Male Branch Tee | 1/4" Tube OD x 1/4" Tube OD x 1/8" Male Pipe | Brass
1872X4S by Danfoss | Quick Connect Air Brake Adapter | Swivel Male Branch Tee | 1/4" Tube OD x 1/4" Tube OD x 1/8" Male Pipe | Brass

1872X4S by Danfoss | Quick Connect Air Brake Adapter | Swivel Male Branch Tee | 1/4" Tube OD x 1/4" Tube OD x 1/8" Male Pipe | Brass

Sale price$36.08

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Swivel Male Branch Tee
Buy More, Save More!
Quantity Price Each
10–39 $33.92
40–79 $30.67
80+ $27.06
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Material(s):
  • Brass
Compatible Series:
  • 3270 Series
  • 4247 Series
  • 4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA04FF
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Male Pipe Thread D1 M M1 N Hex
C
1872X4S 1/4" 1/8" 0.14" 0.93" 0.93" 0.80" 7/16"
1872X4X4S 1/4" 1/4" 0.23" 0.93" 0.93" 1.04" 9/16"
1872x6x2S 3/8" 1/8" 0.13" 1.15" 1.15" 0.94" 7/16"
1872X6S 3/8" 1/4" 0.23" 1.15" 1.15" 1.14" 9/16"
1872X6X6S 3/8" 3/8" 0.30" 1.15" 1.15" 1.17" 11/16"
1872X8X4S 1/2" 1/4" 0.22" 1.23" 1.23" 1.21" 9/16"
1872X8S 1/2" 3/8" 0.30" 1.24" 1.24" 1.24" 11/16"
1872X8X8S 1/2" 1/2" 0.42" 1.21" 1.19" 1.42" 7/8"
