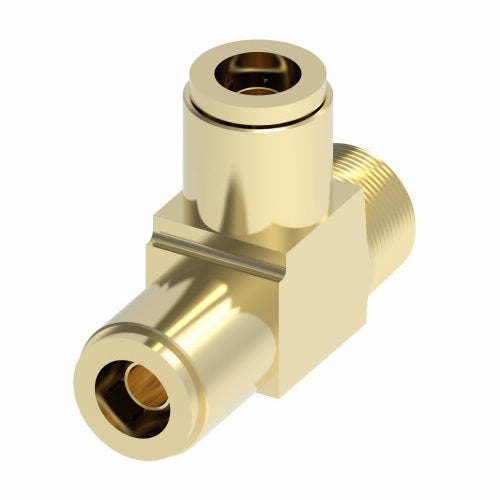

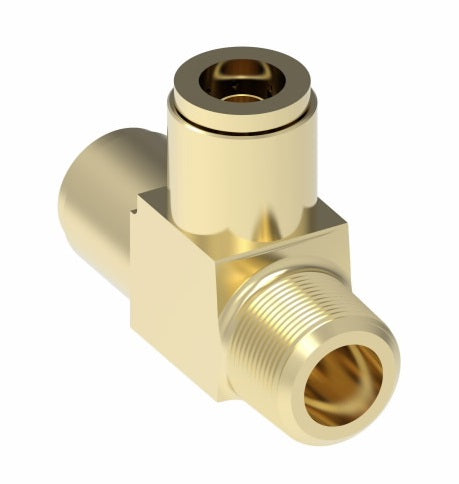

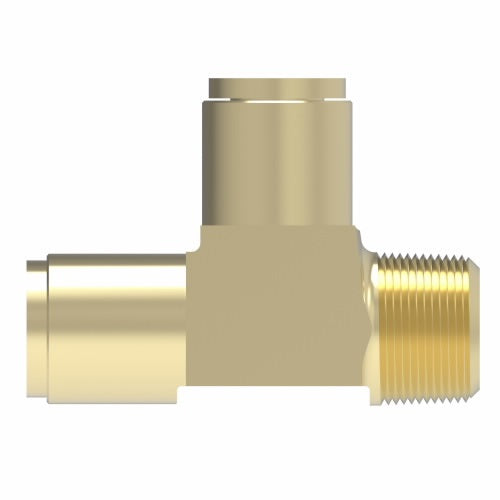

1871X6X6 by Danfoss | Quick Connect Air Brake Adapter | Male Run Tee | 3/8" Tube OD x 3/8" Male Pipe x 3/8" Tube OD | Brass
1871X6X6 by Danfoss | Quick Connect Air Brake Adapter | Male Run Tee | 3/8" Tube OD x 3/8" Male Pipe x 3/8" Tube OD | Brass
1871X6X6 by Danfoss | Quick Connect Air Brake Adapter | Male Run Tee | 3/8" Tube OD x 3/8" Male Pipe x 3/8" Tube OD | Brass

1871X6X6 by Danfoss | Quick Connect Air Brake Adapter | Male Run Tee | 3/8" Tube OD x 3/8" Male Pipe x 3/8" Tube OD | Brass

Sale price$48.42
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0424
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Male Pipe Thread D1 M M1 N
1871X4 1/4" 1/8" 0.23" 0.93" 0.93" 0.68"
1871X4X4 1/4" 1/4" 0.32" 0.93" 0.93" 0.83"
1871X6 3/8" 1/4" 0.31" 1.15" 1.15" 0.90"
1871X6X6 3/8" 3/8" 0.41" 1.15" 1.14" 0.90"
1871X6X4X4 3/8x1/4" 1/4" 0.31" 1.14" 1.07" 0.96"
1871X8 1/2" 3/8" 0.41" 1.09" 1.10" 1.22"

Additional Product Data:

Shape:

Tee

Material(s):
  • Brass
Compatible Series:
  • 3270 Series
  • 4247 Series
  • 4245 Series

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
