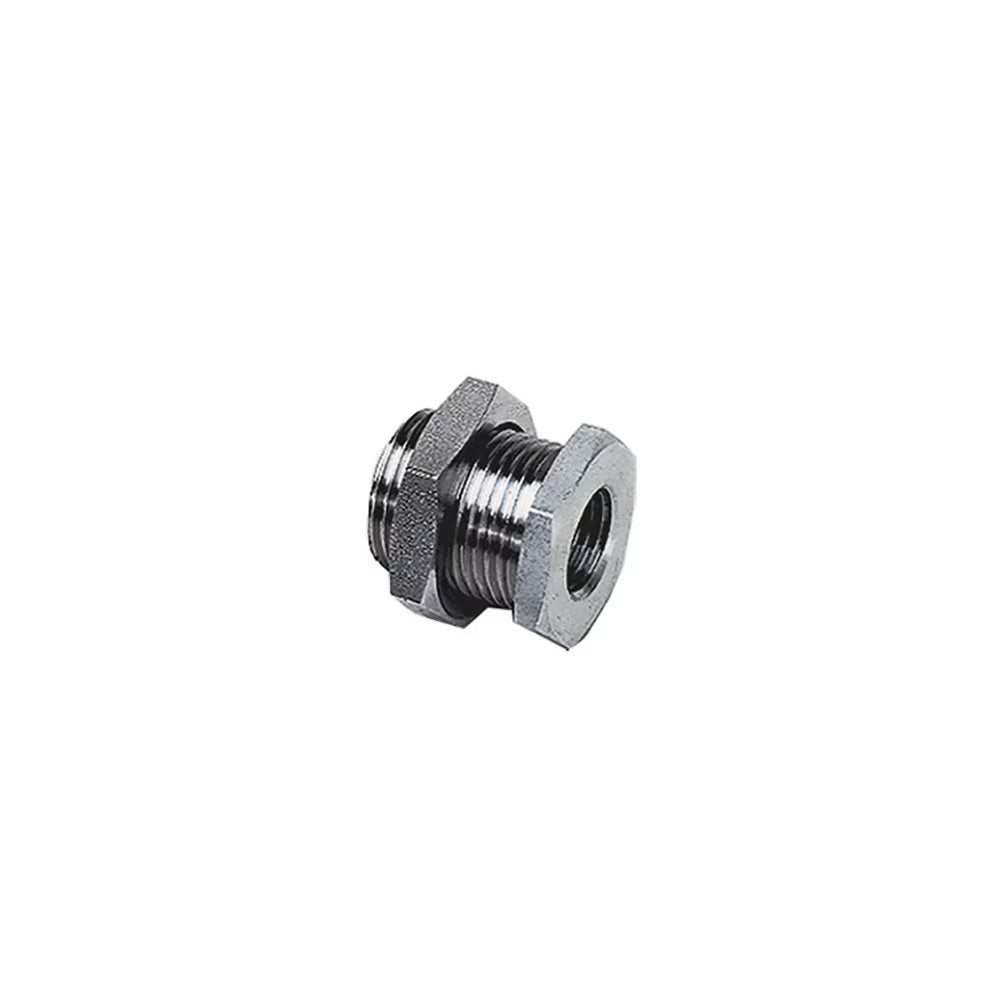

1871 00 22 by Parker | Legris Equal Bulkhead | 1/2" Female NPT Thread | 32 mm Hex (F) | 36 mm Hex (F1) | 35 mm Length | Straight | 316L Stainless Steel | Pack of 2

1871 00 22 by Parker | Legris Equal Bulkhead | 1/2" Female NPT Thread | 32 mm Hex (F) | 36 mm Hex (F1) | 35 mm Length | Straight | 316L Stainless Steel | Pack of 2

Sale price$177.47

by Parker Hannifin
Stainless Steel Adapters:1871 Equal Bulkhead Adaptor, Female NPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $166.82
30–59 $150.85
60+ $133.10
Discounts applied in cart/checkout.

Product Data:

Series:
  • 1871 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female NPT
  • 1/2in Female NPT
  • Some Ends Match
Adapters and Manifolds:
Part Number C F F1 K (max) L L1 ØT (min) Kg
1871 00 11 1/8" 19 mm 22 mm 9 mm 14 mm 5 mm 16.5 mm .031 Kg
1871 00 14 1/4" 24 mm 22 mm 9 mm 14 mm 5 mm 20.5 mm .060 Kg
1871 00 18 3/8" 30 mm 32 mm 18 mm 23 mm 5 mm 26.5 mm .096 Kg
1871 00 22 1/2" 32 mm 36 mm 22 mm 29 mm 6 mm 28.5 mm .119 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
