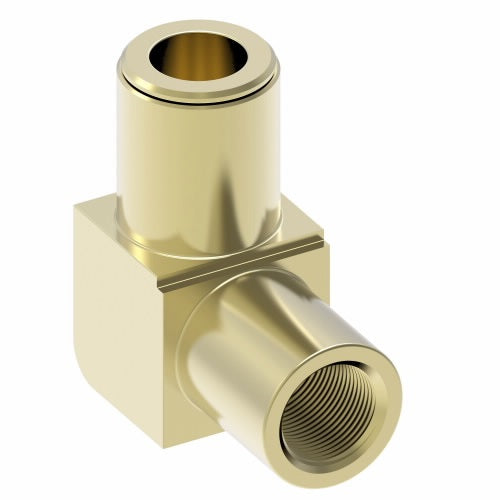

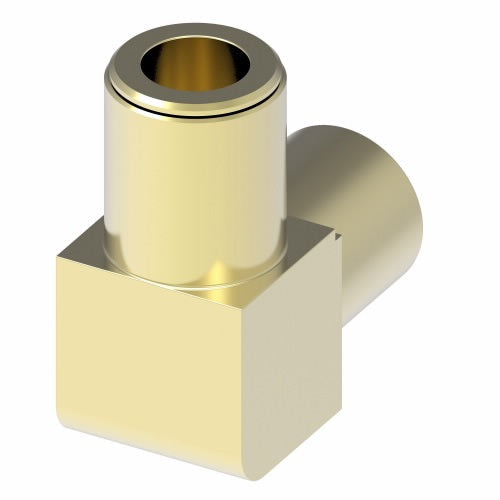

1870X6X2 by Danfoss | Quick Connect Air Brake Adapter | Female Connector 90° Elbow | 3/8" Tube OD x 1/8" Female NPTF | Brass
1870X6X2 by Danfoss | Quick Connect Air Brake Adapter | Female Connector 90° Elbow | 3/8" Tube OD x 1/8" Female NPTF | Brass
1870X6X2 by Danfoss | Quick Connect Air Brake Adapter | Female Connector 90° Elbow | 3/8" Tube OD x 1/8" Female NPTF | Brass

1870X6X2 by Danfoss | Quick Connect Air Brake Adapter | Female Connector 90° Elbow | 3/8" Tube OD x 1/8" Female NPTF | Brass

Sale price$34.76
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0203
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Female Pipe Thread M N
1870X4 1/4" 1/8" 1.03" 0.82"
1870X6X2 3/8" 1/8" 1.26" 0.96"
1870X6 3/8" 1/4" 1.28" 1.09"
1870X6X6 3/8" 3/8" 1.21" 1.07"
1870X8 1/2" 3/8" 1.28" 1.11"
1870X8X8 1/2" 1/2" 1.36" 1.07"

Additional Product Data:

Shape:

90 Degree

Material(s):
  • Brass
Compatible Series:
  • 3270 Series
  • 4247 Series
  • 4245 Series
