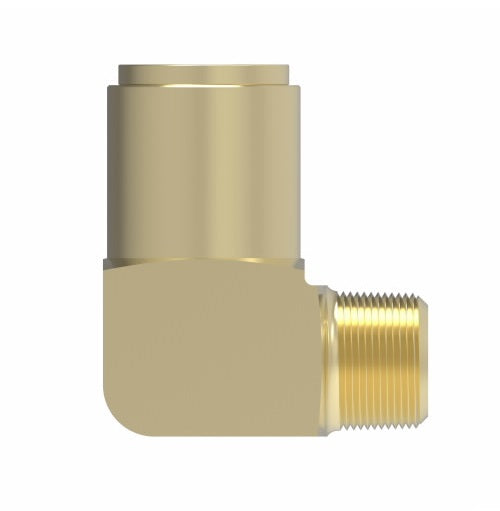

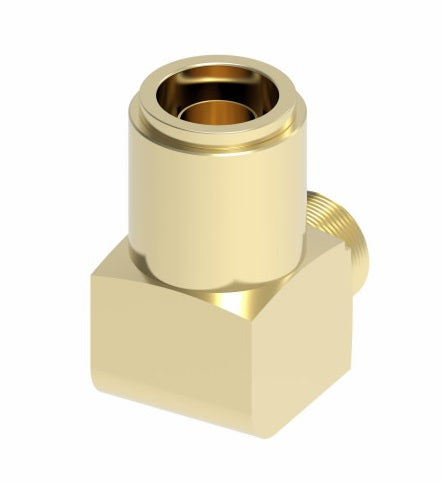

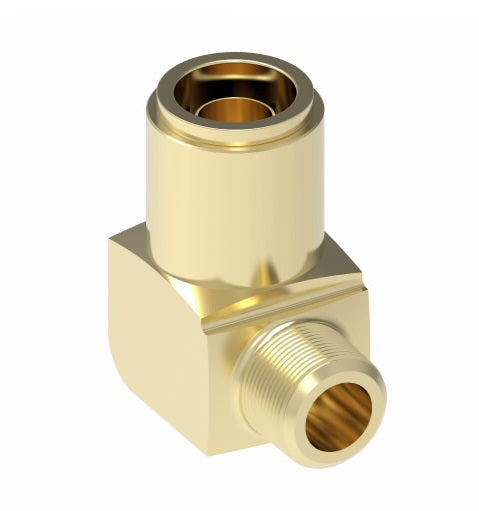

1869X6X6 by Danfoss | Quick Connect Air Brake Adapter | Male Connector 90° Elbow | 3/8" Tube OD x 3/8" Male NPTF | Brass
Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Male Connector
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.58 |
| 40–79 | $11.37 |
| 80+ | $10.04 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
|||
| Assembly & Disassembly: | |||
 |
|||||
|---|---|---|---|---|---|
| Brass Part Number |
Tube O.D. | Male Pipe Thread | D1 | M | N |
| 1869x2.5x1 | 5/32" | 1/16" | 0.13" | 0.75" | 0.59" |
| 1869X2.5 | 5/32" | 1/8" | 0.19" | 0.75" | 0.59" |
| 1869X3 | 3/16" | 1/8" | 0.19" | 0.84" | 0.69" |
| 1869X4 | 1/4" | 1/8" | 0.19" | 0.92" | 0.68" |
| 1869X4X4 | 1/4" | 1/4" | 0.31" | 0.92" | 0.81" |
| 1869X4X6 | 1/4" | 3/8" | 0.41" | 1.03" | 0.83" |
| 1869X6X2 | 3/8" | 1/8" | 0.19" | 1.08" | 0.78" |
| 1869X6 | 3/8" | 1/4" | 0.31" | 1.13" | 0.96" |
| 1869X6X6 | 3/8" | 3/8" | 0.41" | 1.18" | 0.98" |
| 1869X6X8 | 3/8" | 1/2" | 0.53" | 1.27" | 1.07" |
| 1869X8X4 | 1/2" | 1/4" | 0.31" | 1.23" | 1.00" |
| 1869X8 | 1/2" | 3/8" | 0.41" | 1.25" | 0.98" |
| 1869X8X8 | 1/2" | 1/2" | 0.53" | 1.28" | 1.11" |
| 1869X10X6 | 5/8" | 3/8" | 0.41" | 1.44" | 1.09" |
| 1869X10 | 5/8" | 1/2" | 0.53" | 1.48" | 1.22" |
